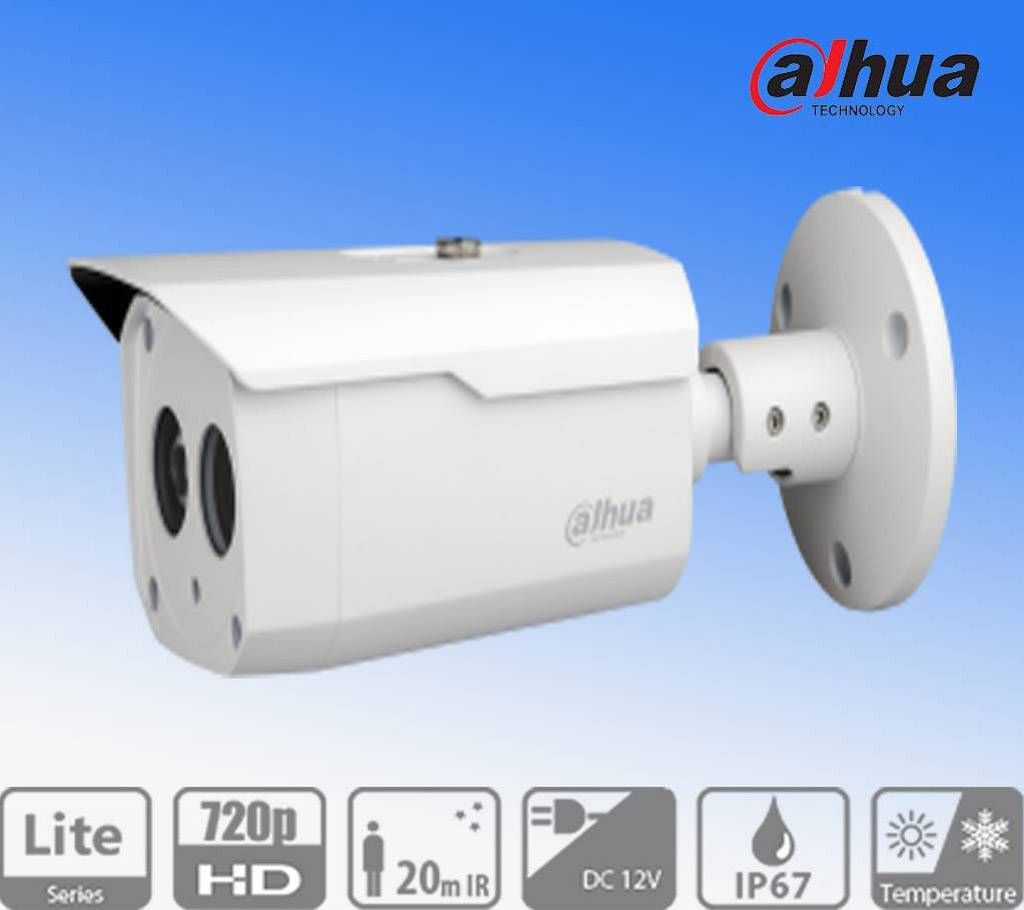

Dahua 1 Megapixel CC Camera DH-HAC HFW1100BP
DH-HAC-HFW1100B
1Megapixel 720P Water-proof HDCVI IR-Bullet Camera
Features:-
1/2.9" 1Megapixel CMOS
25/30fps@720P
High speed, long distance real-time transmission
Day/Night(ICR), AWB, AGC, BLC, 2DNR
3.6mm fixed lens (6mm, 8mm optional)
Max. IR LEDs length 50m, Smart IR
IP67, DC12V
Technical Specifications
Model DH-HAC-HFW1100BP DH-HAC-HFW1100BN
Camera
Image Sensor 1/2.9" 1Megapixel CMOS
Effective Pixels 1280(H)×720(V)
Electronic Shutter 1/50s~1/100,000s 1/60s~1/100,000s
Video Frame Rate 25fps@720P 30fps@720P
Synchronization Internal
Min. Illumination 0.05Lux/F1.6, 0Lux IR on
Video Output 1-channel BNC HDCVI high definition video output
Camera Features
Max. IR LEDs Length 50m, Smart IR
Day/Night Auto(ICR) / Color / B/W
Noise Reduction 2D
Lens
Focal length 3.6mm (6mm, 8mm optional)
Angle of View H: 88º(52º/39.4º)
Mount Type M12
General
Power Supply DC12V±25%
Power Consumption Max 4.2W
Working Environment -30°C~+60°C / Less than 95%RH (no condensation)
Transmission Distance Over 800m via 75-3 coaxial cable
Ingress Protection IP67
Dimensions(W×D×H) 241.8mm×90.2mm×83.7mm
Weight 0.635kg
Material : Metal
