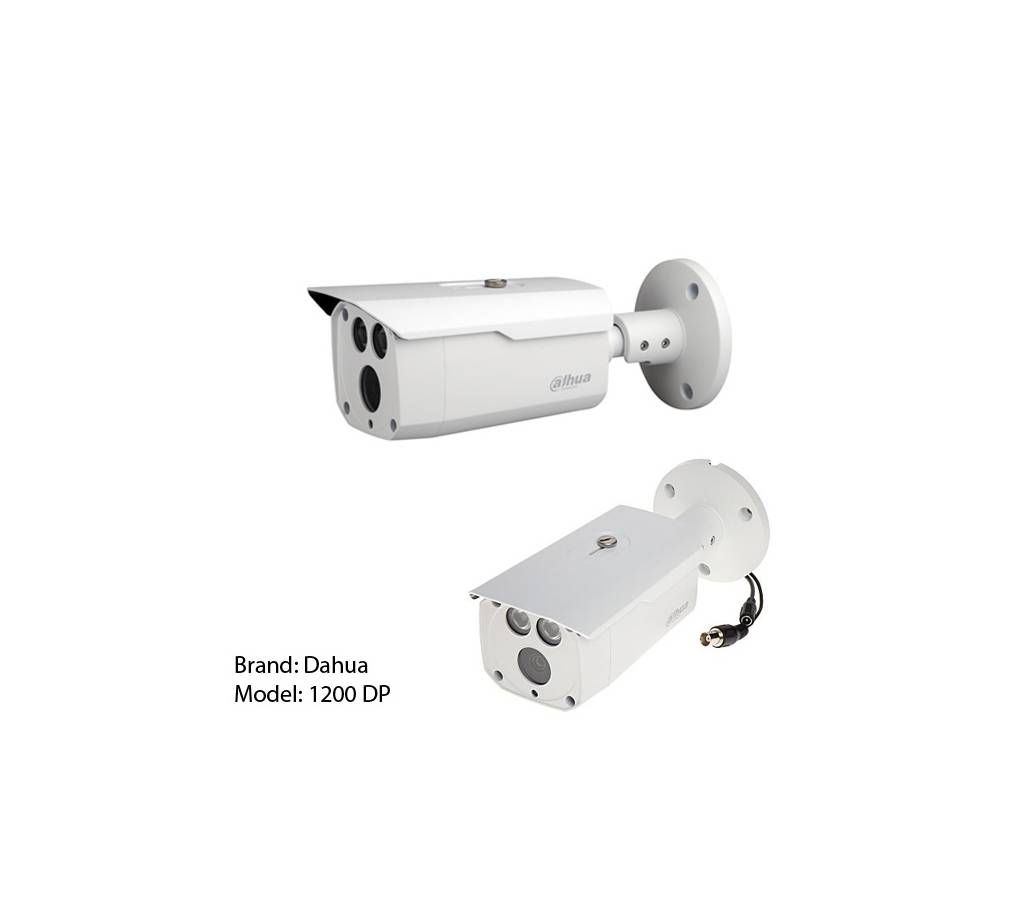

Dahua 1200 Dp CC Camera
Dahua HD Camera HAC-HFW-1200DP Features
Dahua HD Camera HAC-HFW-1200DP 2 MP IR Mini-Bullet HDCVI Camera
2MP HDCVI IR Bullet Camera
The parameters and datasheets below can only be applied to 1200-S3 series
Max 30fps@1080P
HD and SD output switchable
3.6mm fixed lens (6mm, 8mm optional)
Max. IR length 80m, Smart IR
IP67, DC12V
Camera HAC-HFW-1200DP
Image Sensor 1/2.7″ CMOS
Effective Pixels 1920(H)×1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination 0.02Lux/F2.0, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 80m (262feet)
IR On/Off Control Auto / Manual
IR LEDs 2
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (6mm, 8mm Optional)
Max Aperture F2.0
Angle of View H: 89.9°(59.4°/41.4°)
Focus Control N/A
Close Focus Distance 600mm (1800mm/3000mm)
23.62” (70.87”/118.11”)
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 360°
Tilt: 0° ~ 87°
Rotation: 0° ~ 360°
