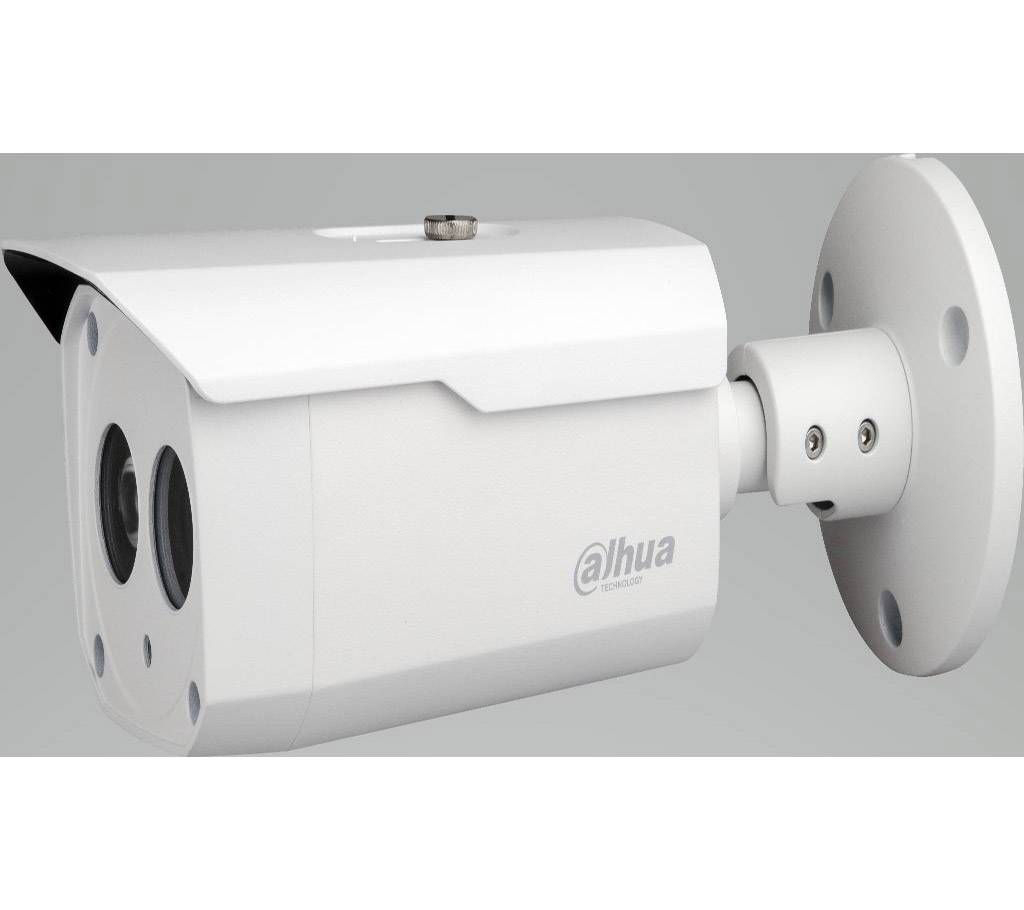

Dahua 2 Megapixel CC Camera DH-HAC HFW1200BP
DH-HAC-HFW1200BP
2Megapixel 1080P Water-proof HDCVI IR-Bullet Camera
Features
1/2.7" 2Megapixel CMOS
25/30fps@1080P
High speed, long distance real-time transmission
Day/Night(ICR), AWB, AGC, BLC, 2DNR
3.6mm fixed lens (6mm, 8mm optional)
Max. IR LEDs length 50m, Smart IR
IP67, DC12V
DH-HAC-HFW1200BP
Technical Specifications
Model DH-HAC-HFW1200BP DH-HAC-HFW1200BN
Camera
Image Sensor 1/2.7" 2Megapixel CMOS
Effective Pixels 1930(H)×1088(V)
Electronic Shutter 1/50s~1/100,000s 1/60s~1/100,000s
Video Frame Rate 25fps@1080P 30fps@1080P
Synchronization Internal
Min. Illumination 0.02Lux/F2.0, 0Lux IR on
Video Output 1-channel BNC HDCVI high definition video output
Camera Features
Max. IR LEDs Length 50m, Smart IR
Day/Night Auto(ICR) / Color / B/W
Noise Reduction 2D
Lens
Focal length 3.6mm (6mm, 8mm optional)
Angle of View H: 89.9º(59.4º/41.4º)
Mount Type M12
General
Power Supply DC12V±20%
Power Consumption Max 4.5W
Working Environment -30°C~+60°C / Less than 95%RH (no condensation)
Transmission Distance Over 500m via 75-3 coaxial cable
Ingress Protection IP67
Dimensions(W×D×H) 241.8mm×90.2mm×83.7mm
Weight 0.635kg
Material : Metal
