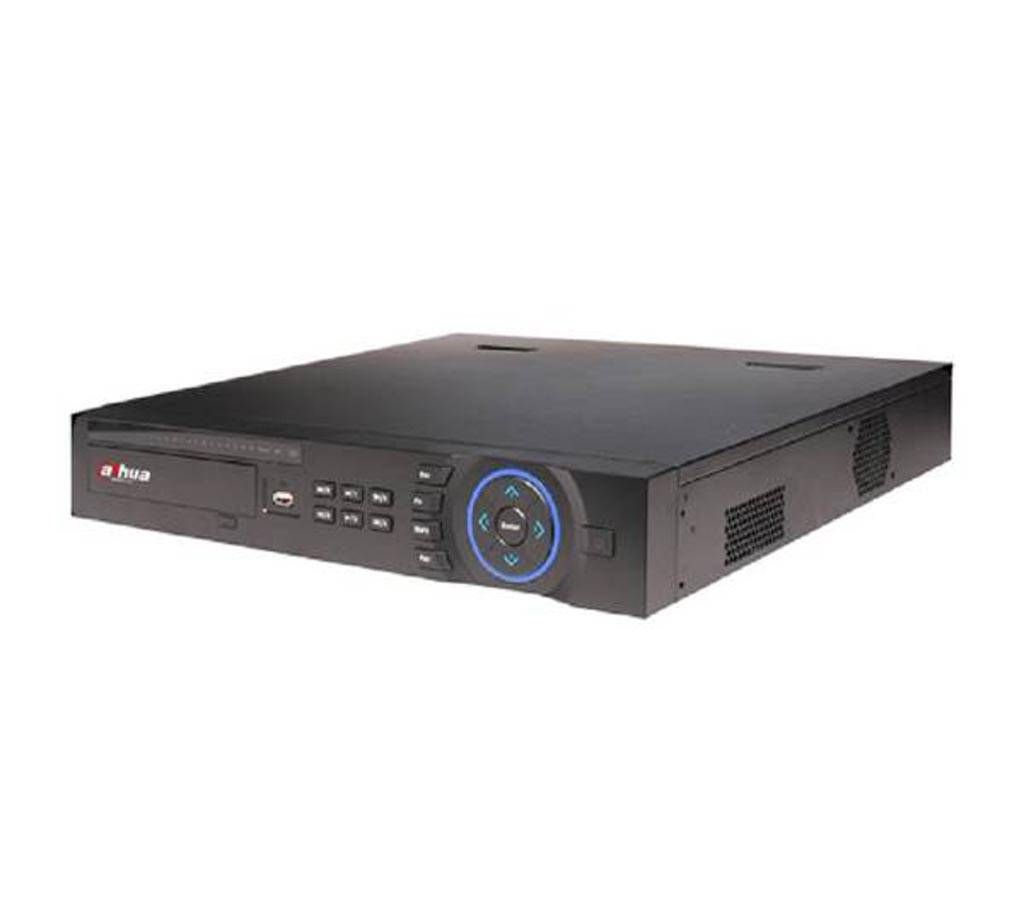

DAHUA 32 Channel HDCVI DVR DH-HCVR-4232AN-S3
DAHUA HDCVI DVR DH-HCVR-4232AN-S3
32 Channel Tribrid 720P 1U Digital Video Recorder
Embedded processor
Support HDCVI/CVBS video inputs
Max 16 channels IP camera inputs
Max 64Mbps Incoming Bandwidth
Long transmission distance over coax cable
Support 2 SATA HDD, up to 16TB
Technical Specification
Model: DH-HCVR-4232AN-S3
System
Main Processor
Embedded Processor
Operating System
Embedded LINUX
Display Interface: 1 HDMI ,1 VGA,1 TV
Resolution: 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display: 1/4/8/9/16/25
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection: Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input
Relay Output
Playback and Backup
Playback
1/4/9/16
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode: USB Device/Network
Storage: Internal HDD 2 SATA Ports, up to 8TB capacity for each disk eSATA
Auxiliary Interface: USB
2 USB Ports (1 USB 3.0,1 USB 2.0)
RS232
RS485
1 Port, for PTZ Control
Third-party Support
Third-party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Audio and Video
HDCVI Camera Input
32 Channel
IP Camera Input
16 Channel, each channel up to 5MP
Audio In/Out
1/1, RCA
Two-way Talk
Reuse audio in/out, RCA
Recording Compression: H.264
Resolution: 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate
Main Stream: 1080N(12fps)/720P(15fps)/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Sub steram:CIF/QCIF(1~7fps)
Bit Rate: 1Kbp
