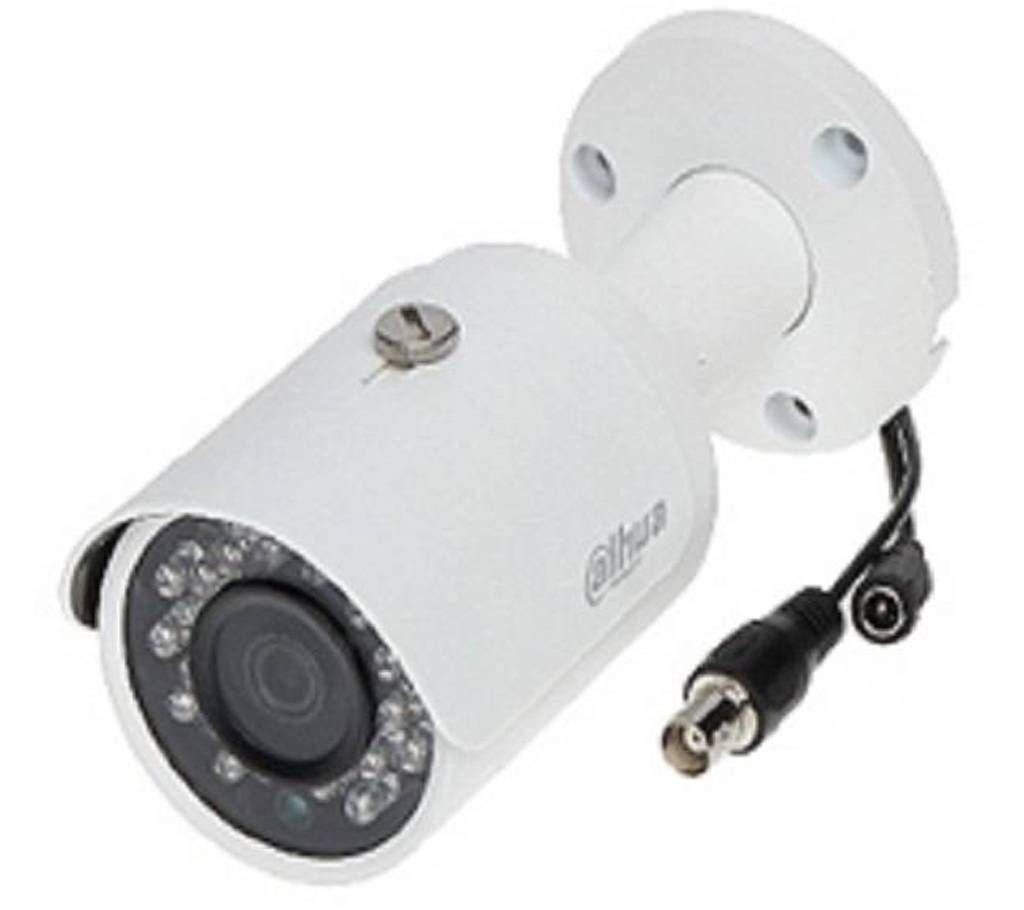

DAHUA HAC-HFW-1200SP HDCVI IR BULLET CAMERA
DAHUA HAC-HFW-1200SP HDCVI IR বুলেট ক্যামেরা
Dahua HAC-HFW 1200SP
2MP HDCVI IR Bullet Camera
The parameters and datasheets below can only be applied to 1200-S3A series
Max 30fps@1080P
HD and SD output switchable
3.6mm fixed lens (6mm optional)
Max. IR length 30m, Smart IR
IP67, DC12V
Camera Image Sensor
1/2.7″ CMOS
Effective Pixels 1920(H)×1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed
PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination 0.02Lux/F2.0, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 30m (98feet)
IR On/Off Control Auto / Manual
IR LEDs 18
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (6mm Optional)
Max Aperture F2.0
Angle of View H: 87.5°(54.7°)
Focus Control N/A
Close Focus Distance
900mm (2000mm)
35.43” (78.74”)
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
(8px/ft)
3.6mm: 53m(175ft)
6mm: 80m(262ft)
Observe
63px/m
(19px/ft)
3.6mm: 21m(70ft)
6mm: 32m(105ft)
Recognize:
125px/m (38px/ft)
3.6mm: 11m(35ft)
6mm: 16m(52ft)
