Dahua HD Camera HAC-HFW-1000R
Dahua HD ক্যামেরা HAC-HFW-1000R
Dahua HD Camera HAC-HFW-1000R Features

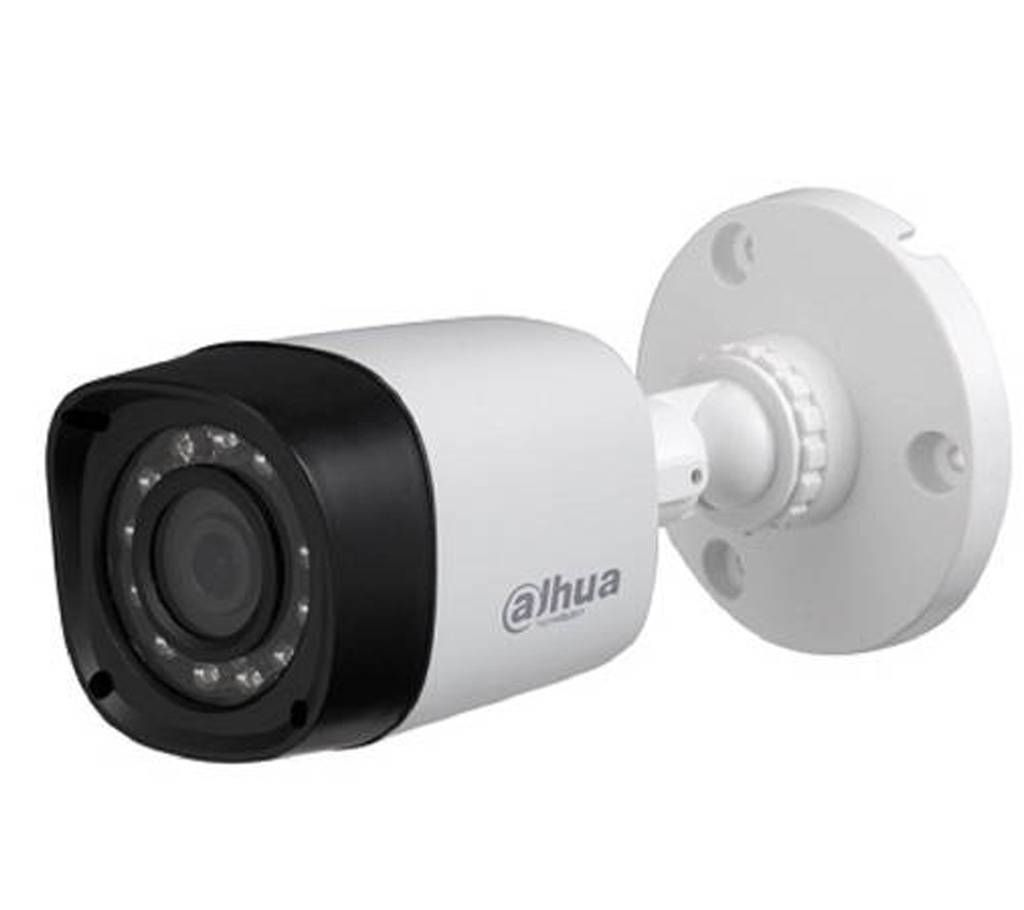

Dahua HD Camera HAC-HFW-1000R 1MP IR Mini-Bullet HD Camera
1 megapixel CMOS
25/30fps@720P
High speed, long distance real-time transmission
Day/Night(ICR), AWB, AGC, BLC, 2D-DNR
3.6mm fixed lens
Max. IR LEDs length 15m, Smart IR
IP67, DC12V
Dahua HD Camera HAC-HFW-1000R Specifications
Camera HAC-HFW1000R
Image Sensor 1/4″ CMOS
Effective Pixels 1280(H)×720(V), 1MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000sNTSC: 1/30~1/100000s
Minimum Illumination 0.05Lux/F2.0, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 20m (66feet)
IR On/Off Control Auto / Manual
IR LEDs 12
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm Optional)
Max Aperture F2.0
Angle of View H: 60° (83.4°)
Focus Control N/A
Close Focus Distance 600mm (500mm)23.6 (19.69)
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 360°Tilt: 0° ~ 90°
Rotation: 0° ~ 360°
Video
Resolution 720P (1280×720)
Frame Rate 25/30fps@720P
Video Output 1-channel BNC HDCVI high-definition video output / CVBS video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface N/A
Electrical
Power Supply 12V DC ±25%
Power Consumption Max 2.8W (12V DC, IR on)
Environmental
Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH* Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection &Vandal Resistance IP67
Construction
Casing Plastic
Dimensions 154.3mm×69.8mm×69.8mm (6.07″×2.75″×2.75″)
Net Weight 0.20kg (
