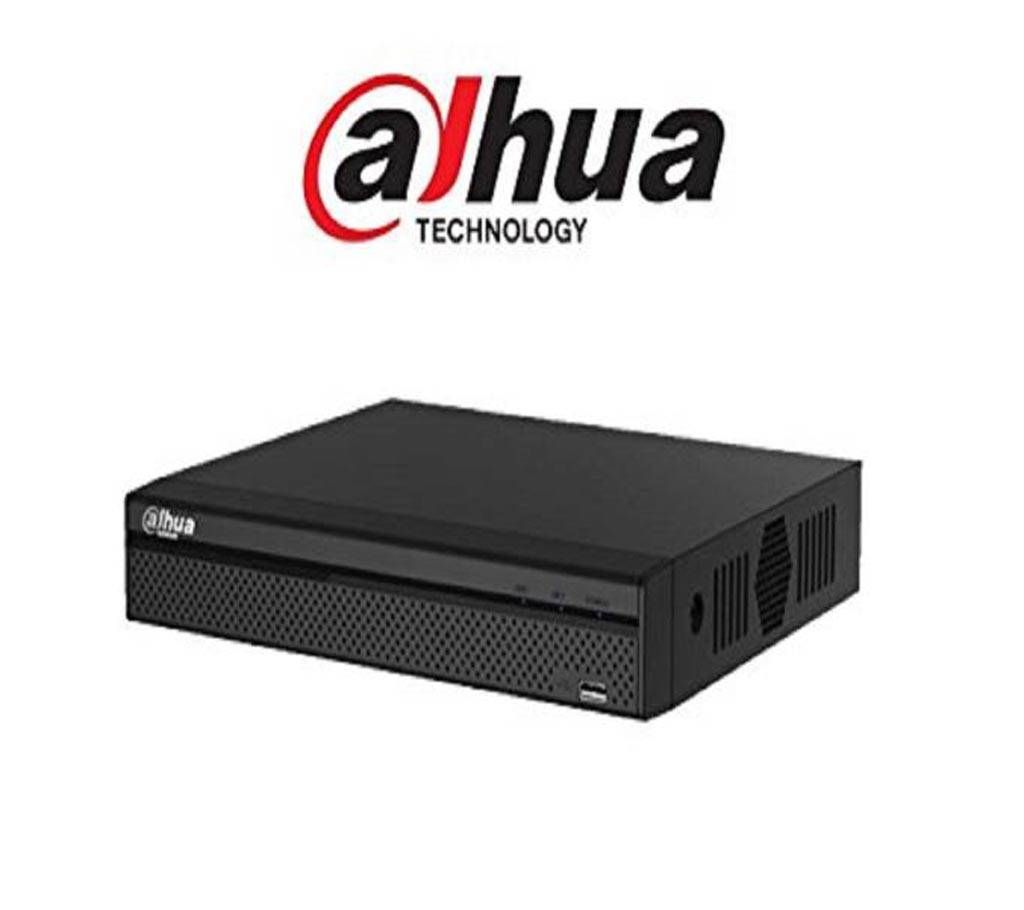

Dahua-XVR5216AN-16Ch-Digital Video Recorder
Dahua-XVR5216AN-16Ch ডিজিটাল ভিডিও রেকর্ডার
Package include:
1 * XVR5216AN (without HDD)
1 * Retail packaging box
Feature:
Embedded processor
H.264+/H.264 dual-stream video compression
Support HDCVI/AHD/TVI/CVBS/IP video inputs
Max 24 channels IP camera inputs, each channel up
Max 96Mbps Incoming Bandwidth
Smart Search and Intelligent Video System
Main Processor
Embedded Processor
Operating System
Embedded LINUX
Display
Interface
16CH::1 HDMI ,1 VGA SPOT(configurable)
Resolution
1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display
16CH: 1/4/8/9/16/25
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis
Playback and Backup
Playback
16CH: 1/4/9/16
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode
USB Device/Network
Storage
Internal HDD
2 SATA Ports, up to 8TB capacity for each disk
Auxiliary Interface: USB
16CH:2USB Ports (1 USB 2.0 , 1 USB 3.0)
RS232
N/A
RS485
1 Port, for PTZ Control
