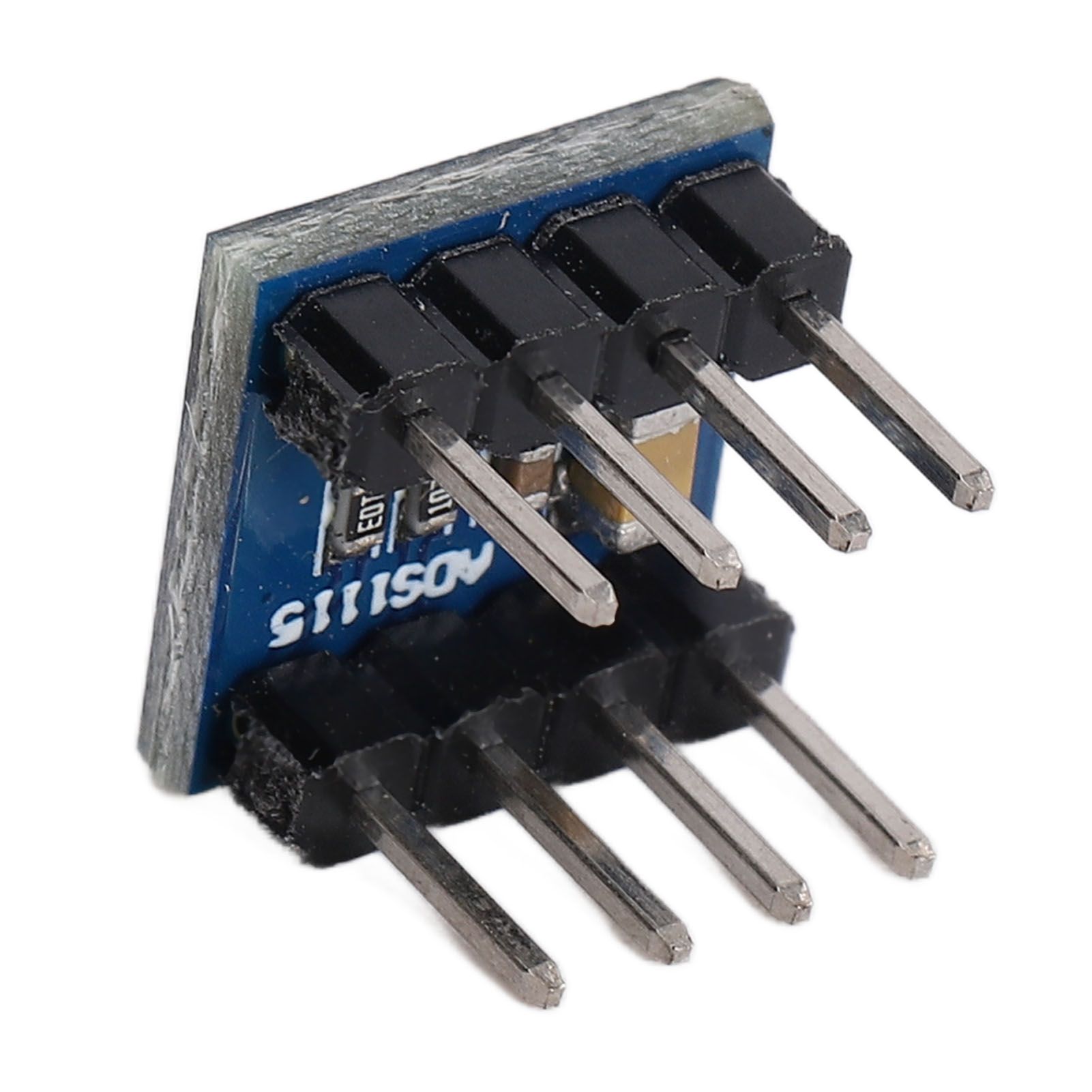

Data Collecting Module Analog To Digital Converter 16 Bits 4 Channels ADC
- High Quality Materials: Made of high quality PCB materials, the ADC module is sturdy, durable, not easily damaged, and has a long service life.
- Connection: Use USB to TTL to connect 51 single chip microcomputer. SCL is connected to P3.2, SDA is connected to P3.3, VCC is connected to the power supply, and GND is grounded (the same ground as the GND below).
- High Accuracy: With fine workmanship, the ADC module is highly accurate, ultra small, light in weight, easy to carry, and can be carried around.
- 4 Channels 16 Bits: Using sophisticated production technology, the signal conversion module has 4 channels, 16 bits, and has excellent performance.
- Parameter: The sampled value is displayed on the LCD 1602. AIN0, AIN1, AIN2, connect to 3.3V, AIN3 connects to GND, the LCD will display 4 values all about 3.3.
