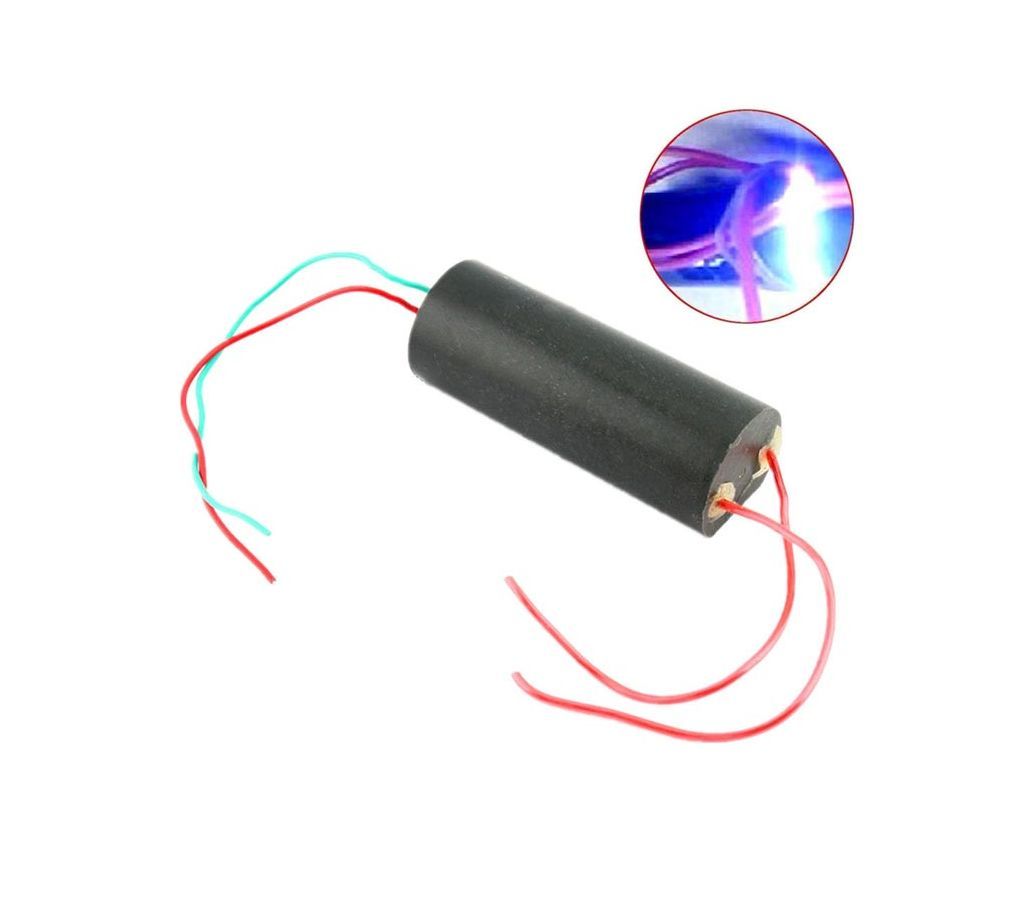

DC 3V-6V bis 400kV 400000V Boost Step up Power Module High Voltage Generator
হাই ভোল্টেজ জেনারেটর
DC 3V-6V 400KV 400000V Boost Step-up Power Module High-voltage Generator Inverters High Voltage Transformer Black
Item Description:
Input voltage: DC 3 V to 6 V
Input current: 2 A – 5 A
High pressure type: the type of pulse current
Output voltage: 400000 v(Please pay attention to safety)
High pressure discharge distance between: 10 mm – 20 mm
The output high voltage wire length: 100 mm
Input power cord length: 100 mm (the red line is positive)
Wiring: Red and green power connection red line:”+” green line “-”
Output : the other side ,same color cable
size：24x22x63mm
Please note:
The high-voltage module should avoid the use of electricity in high voltage no-load .
(Power must be adjusted to a suitable distance to the high-voltage output line , battery capacity is
proportional to the distance and the use of the high-pressure arc ( not a voltage as high as possible ,
you must provide enough current ) . Experimental test of the arc distance from short
to long , Do not exceed the maximum arc distance electricity, energy can not be released due
to high pressure , can easily damage the module.)
Work: intermittent , continuous work does not allow more than 1 minute and the output side does not
allow shorting .Improper voltage and long working hours easily damaged module.
Package included:
1 * DC 3V-6V to 400KV 400000V Boost Step-up Power Module High-voltage Generator
