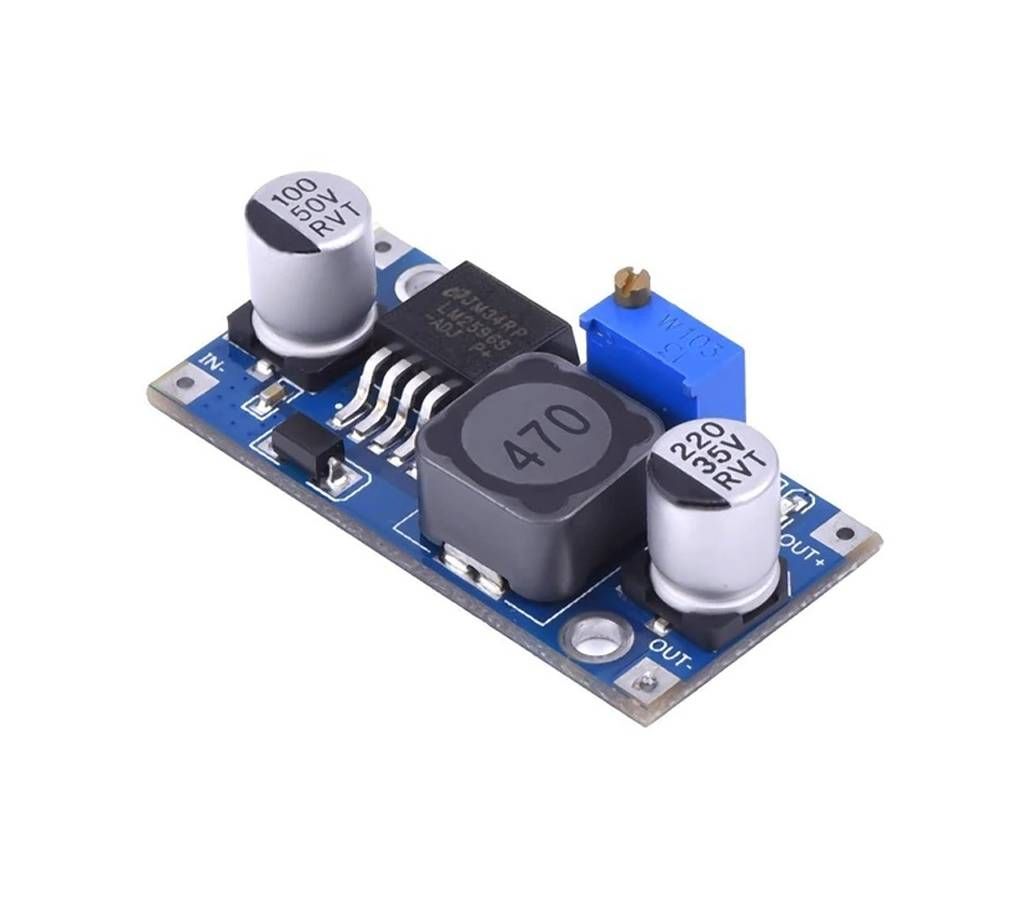

DC-DC Buck Converter Step-Down Power Module
DC-DC Buck Converter Step-Down পাওয়ার মডিউল
This is high performance DC to DC Step Down Adjustable Power Supply Module
Based on Newly developed LM2596S Wide range Switching Regulator.
Size: Approx. 43 x 20 x 14 mm
Color: As the picture show
Full load Temperature rise: 40
Load Regulation: ± 0.5%
Voltage Regulation: ± 0.5%
Dynamic Response speed: 5% 200uS
Input voltage:4.50-40V
Output voltage:1.50-35V(Adjustable)
Output current: Rated current is 2A,maximum 3A(Additional heat sink is required)
Conversion Efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 150KHz
Rectifier: Non-Synchronous Rectification
Module Properties: Non-isolated step-down module (buck)
Short Circuit Protection: Current limiting, since the recovery
Operating Temperature: Industrial grade (-40 to +85 ) (output power 10W or less)
