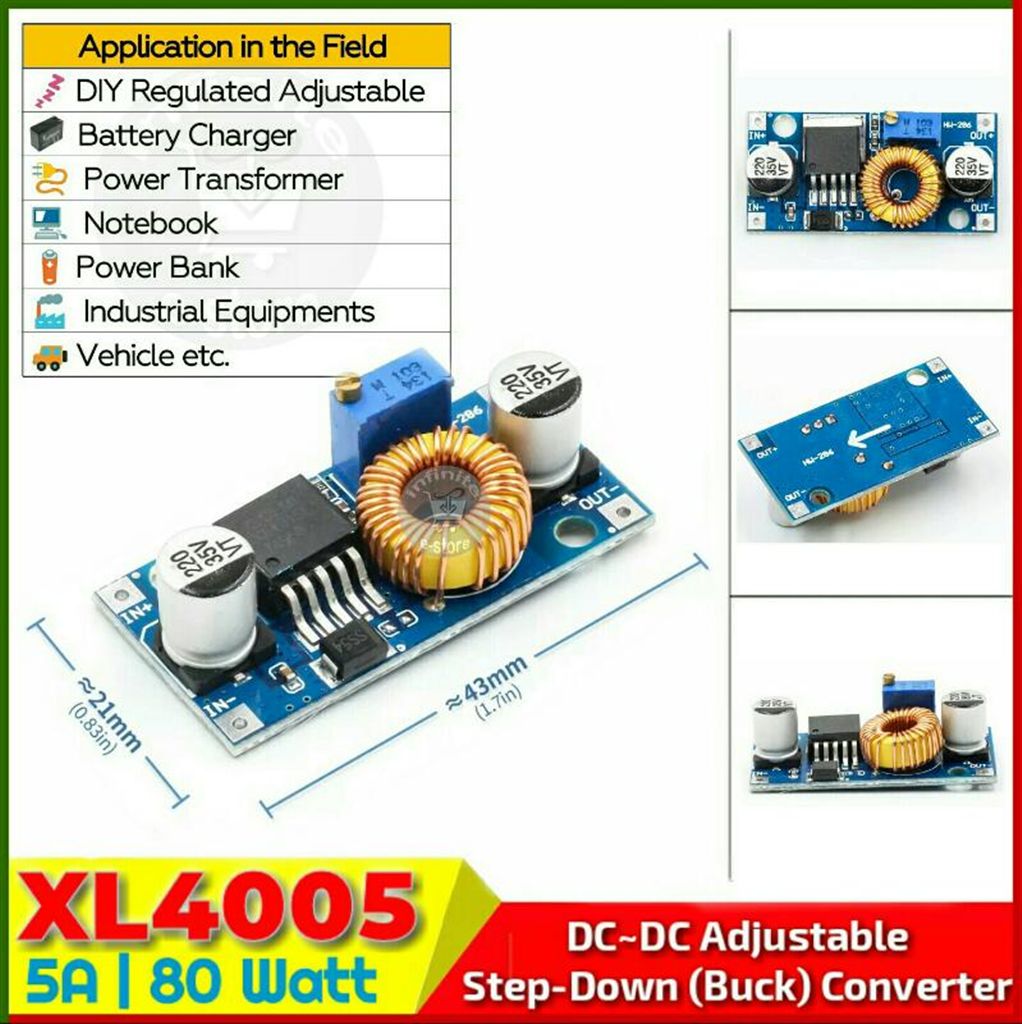

DC Step Down Converter XL4005
DC Step Down কনভার্টার XL4005
Non-isolated step-down module (BUCK)
Input voltage: 4-35V (input please try not to exceed 38V)
Output voltage: 1.25-32V continuously adjustable
Output Current: 0-5A, recommended in 4.5A.
Output Power: 80W recommendations in the use of more than 50W, please add heat sink.
Operating temperature: -40 to + 85 degrees
Operating frequency: 180KHz
Conversion efficiency: up to 96% (efficiency of input and output voltage, current, pressure related)
Load regulation: S (I) ≤0.8%
Voltage Regulation: S (u) ≤0.8%
Power Indicator: YES
Short circuit protection: YES (limit current 8A)
Over temperature protection: (automatically shut off the output after over temperature)
Input Reverse Polarity Protection: None (if necessary please enter the string into the high current diode)
Installation: 2 3mm screws
Connection: Welding, V-IN is the input, V-OUT output
