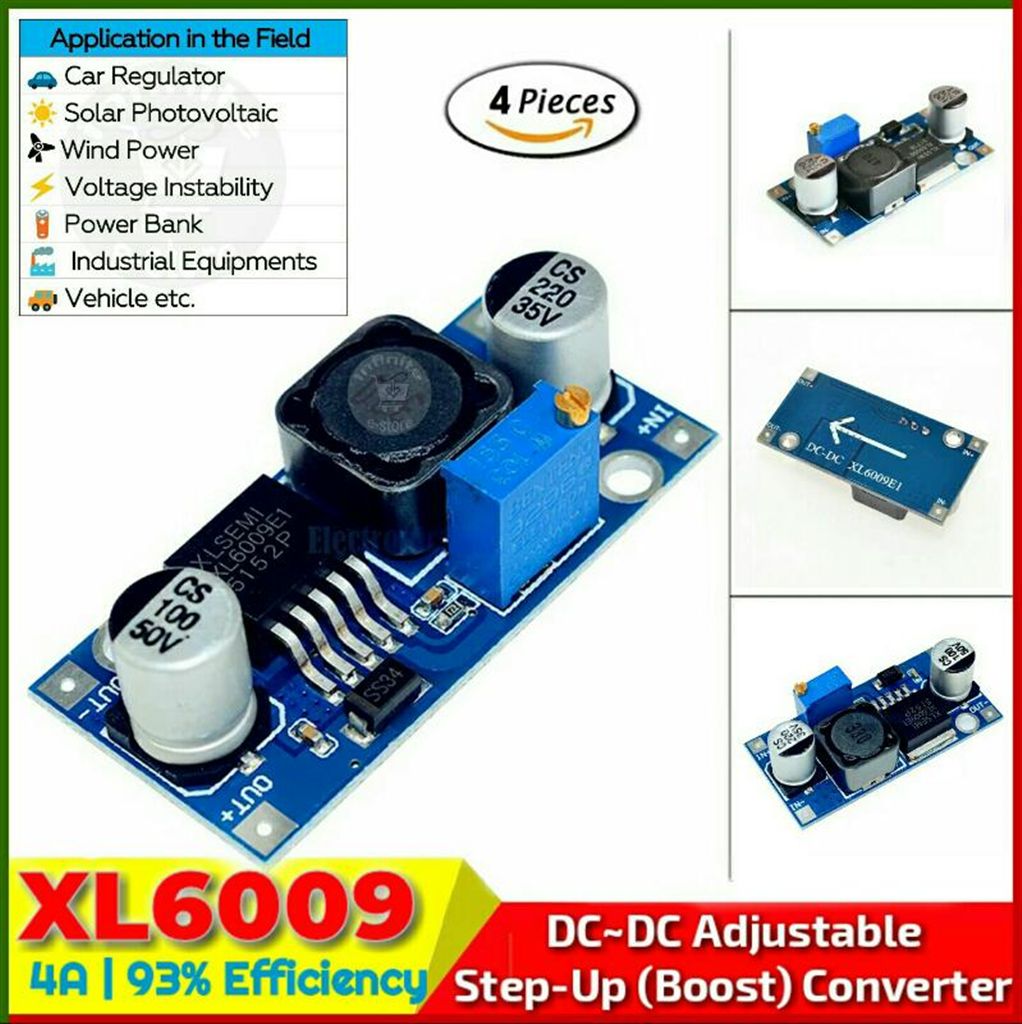

DC Step Up Converter XL6009 4pcs
DC Step Up কনভার্টার XL6009 (৪ পিস)
Automatic Boost module
Properties: Non- isolated boost (BOOST)
Rectification: Non- Synchronous Rectification
Input Range:3.8V- 32V
Output Range:5V-35V
Output Current:3A ( max ),
Conversion efficiency:<93% ( greater the pressure, the lower the efficiency)
Switching frequency:400KHz
Output Ripple:50mV
Load Regulation:± 0.5%
Size: 48mm * 25mm * 14mm
Note:
>Does this modules relative to the XL6009 triode mode conversion efficiency is higher
>Does this module is adjustable booster module, can by adjusting the precision of modules above circle more adjustable potentiometer
>To change the output voltage. The highest output voltage is 38 v. Chronological booster, reverse-time step-down.
Does the module above marked GND (input), the IN + (input), GND (output), the OUT + (output)
>Does working temperature: : industrial grade 40 to + 85 (-) (ambient temperature more than 40 degrees, please reduce power use, or enhance heat dissipation)
