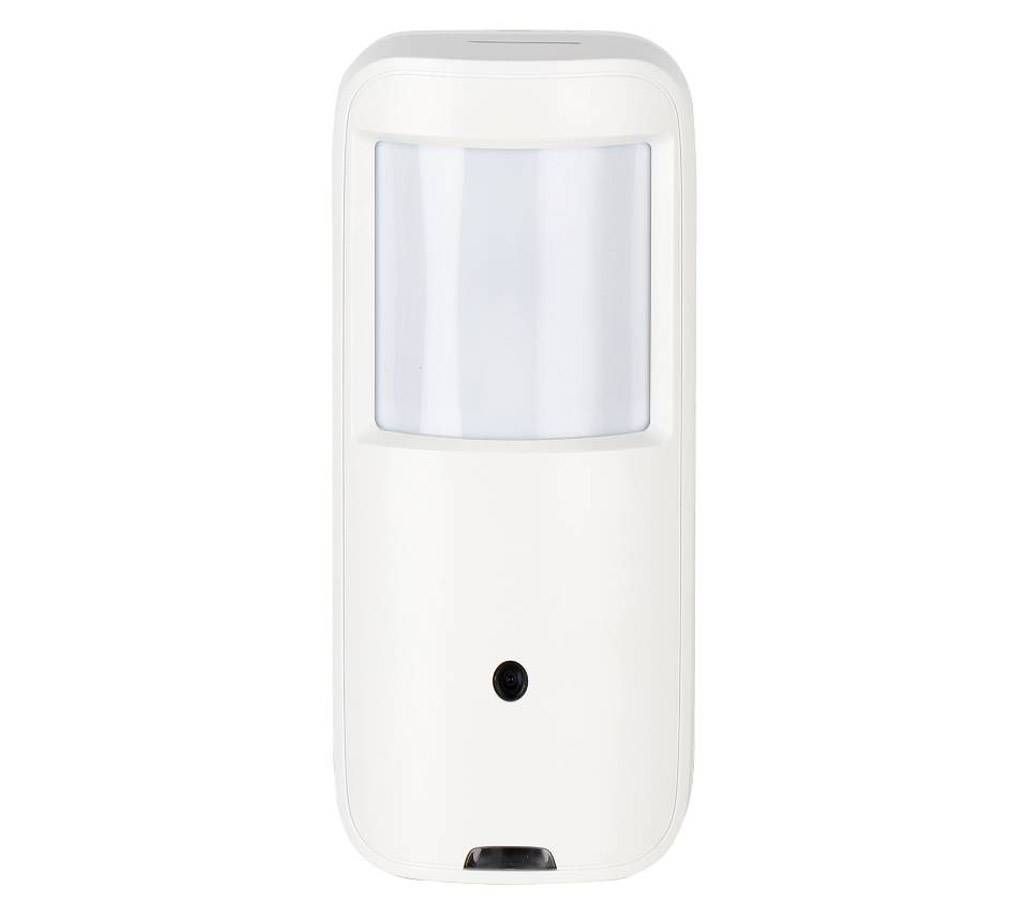

DH-HAC-HUM1220A-PIR 2MP HDCVI MotionEye Camera
DH-HAC-HUM1220A-PIR 2MP HDCVI Motion Eye Camera
DH-HAC-HUM1220A-PIR
2MP HDCVI MotionEye Camera
Max 30fps@1080P
HD and SD output switchable
2.8mm fixed lens
12m/100°detecting range/angle
Two level detection sensitivity adjustable
Built-in tamper switch
DC12V
Technical Specification
Camera
Image Sensor 1/2.9" CMOS
Effective Pixels 1920(H)×1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination 0.02Lux/F2.0(Color), 0.002Lux/F2.0(B/W)
S/N Ratio More than 65dB
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 2.8mm
Max Aperture F2.0
Angle of View H: 100.5°
Focus Control N/A
Close Focus Distance 500mm
19.7''
Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ 180°
Tilt: 0° ~ 180°
Rotation: 0° ~ 360°
Video
Resolution 1080P (1920×1080)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC high definition video output / CVBS
video output (Can switch)
Day/Night Auto (Electronic) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
PIR
Detection Passive infrared
Detection Range 12mx12m, 100°, 19zones
Alarm prompt Red led, can be set to switch off
Sensitivity Two level (jumper)
Pet immunity ≤18Kg
Resistance light 6500LUX
Installation height Defualt bracket, wall mount, 2.2-2.5m
