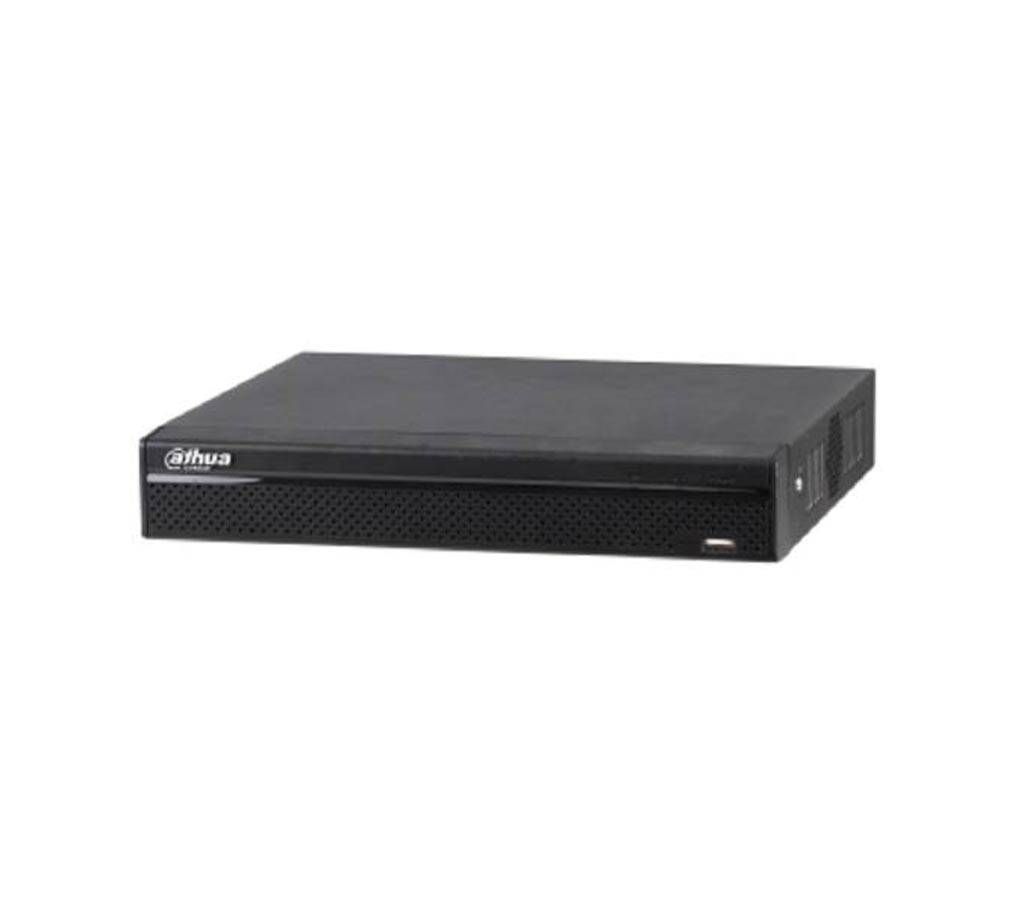

DHI-XVR-4108HS DAHUA 8 CHANNEL PENTA BRID HD DVR
DHI-XVR-4108HS – 8 Channel Penta-brid HD Digital Video Recorder
DHI-XVR-4108HS Support HDCVI/CVBS/HDTVI/AHD video inputs
Max 5/10/18 channels IP camera inputs,each channel up to 5MP(2MP for 4ch)
Max 20/40/72Mbps Incoming Bandwidth
Long transmission distance over coax cable
Support 1 SATA HDD, up to 6TB >Embedded processor
DHI-XVR-4108HS Specifications
System
Main Processor Embedded Processor
Operating System Embedded LINUX
Display
Interface 1 HDMI ,1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display 4CH: 1/4/6
8CH: 1/4/8/9/16
16CH: 1/4/8/9/16/25
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input N/A
Relay Output N/A
Tracking Trigger Event N/A
Playback and Backup
Playback 4CH: 1/4
8CH: 1/4/9
