Digital Megohmmeter
ডিজিটাল মেঘোমিটার

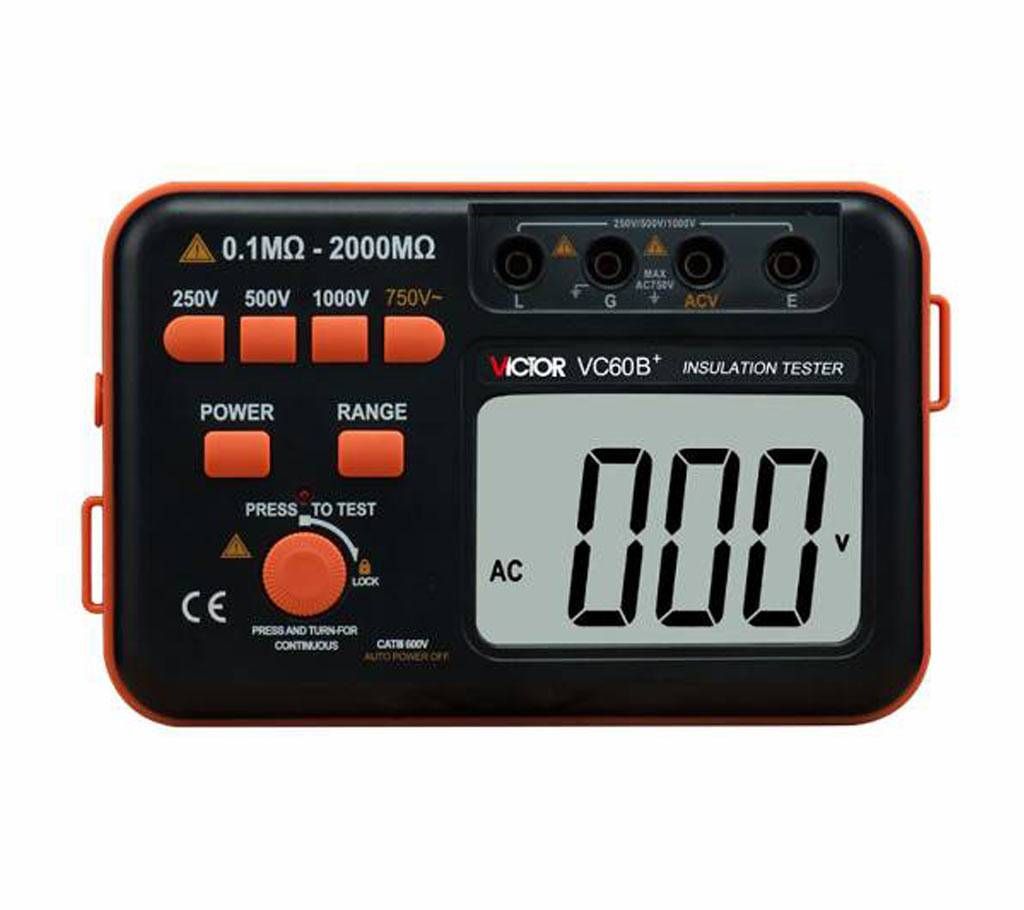

VC60B+ New Type Digital Insulation Tester
Measuring Voltage
250V±10%
500V±10%
1000V±10%
Range
0.1MΩ~20 MΩ
0.1MΩ~50 MΩ
0.1MΩ~100 MΩ
20MΩ~500 MΩ
50MΩ~1000 MΩ
100MΩ~2000 MΩ
Accuracy
±(4%+2)
Current of Short Circuit
1.8mA
1.8mA
1.6mA
Median Resistance
2MΩ
2MΩ
5MΩ
Jack Position: L/E
Special Function: VC60B+
Low Battery Indication
Alarm Function
Red indicator light is illuminated
Over Load Indication
Unit Symbol Display
Auto Power Off
Max. Display: 1999
Using Temperature: 0°C~40°C
Relative Humidity: 30%RH~85%RH
Over Range Display: “1”
Dimension: 105×164×70mm
Weight: 630g(including battery)
Power: 9V(1.5V5# battery)
