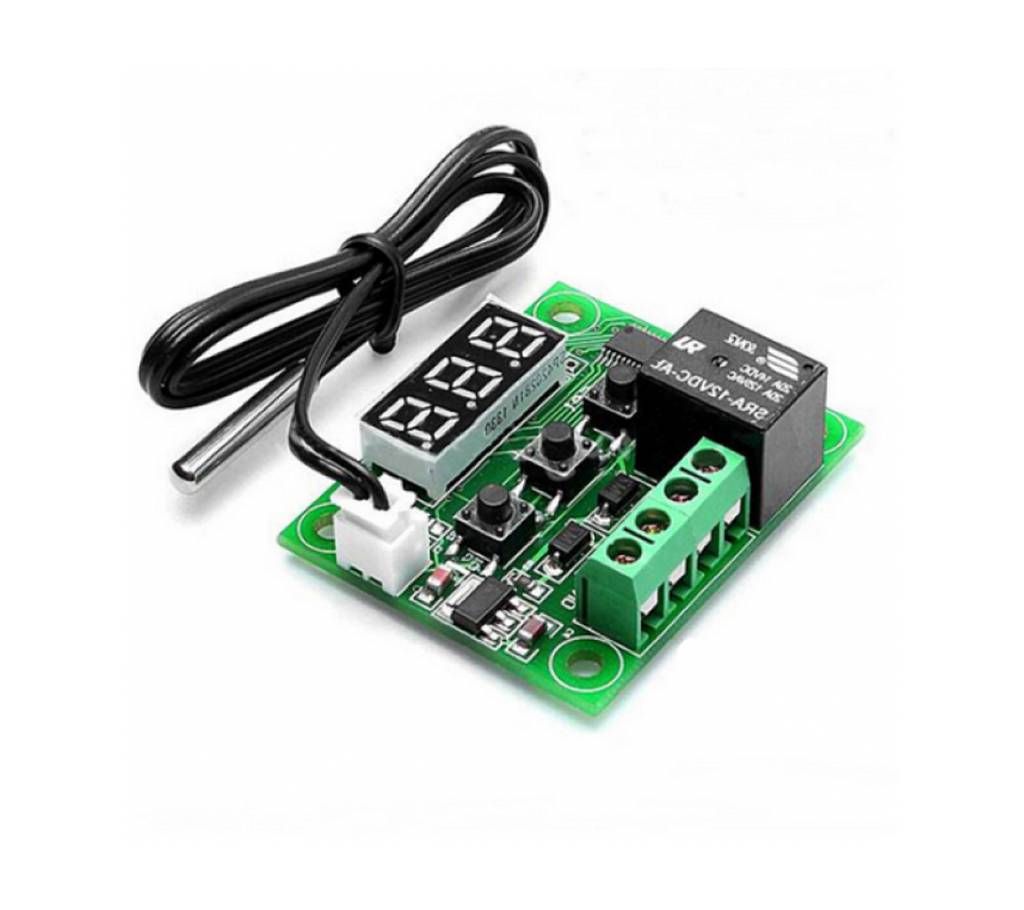

Digital Temperature Controller use Incubator
ডিজিটাল টেম্পারেচার কনট্রোলার ইউজ ইনকিউবেটর
Compact digital thermostat with isolated relay output and 3 digit 0.28” LED display.
Features:programmable set Points, Cool or Heat control, Hysteresis,
Delay and High Temp. Alarm.
Temperature Range: +15 to +220 deg. Fahrenheit
Power: 12VDC Current: ~65mA Relay energized
Refresh rate: 0.5sec. Resolution: 0.1deg . from +15.0 to +220
1.0deg. for above 100deg. Fahrenheit
Accuracy: Measurement : 0.1deg.
Control: 0.1deg.
Relay: SPST-NO 20A/14VDC; 20A/125VAC
Sensor: NTC waterproof probe (12in. leads)
Temp. Range: +15 to +140deg. F; 20-85% humidity
Terminal Strip for Power & Relay contacts.
L: 1-7/8” W: 1-9/16” H: 5/8” WT: .04
