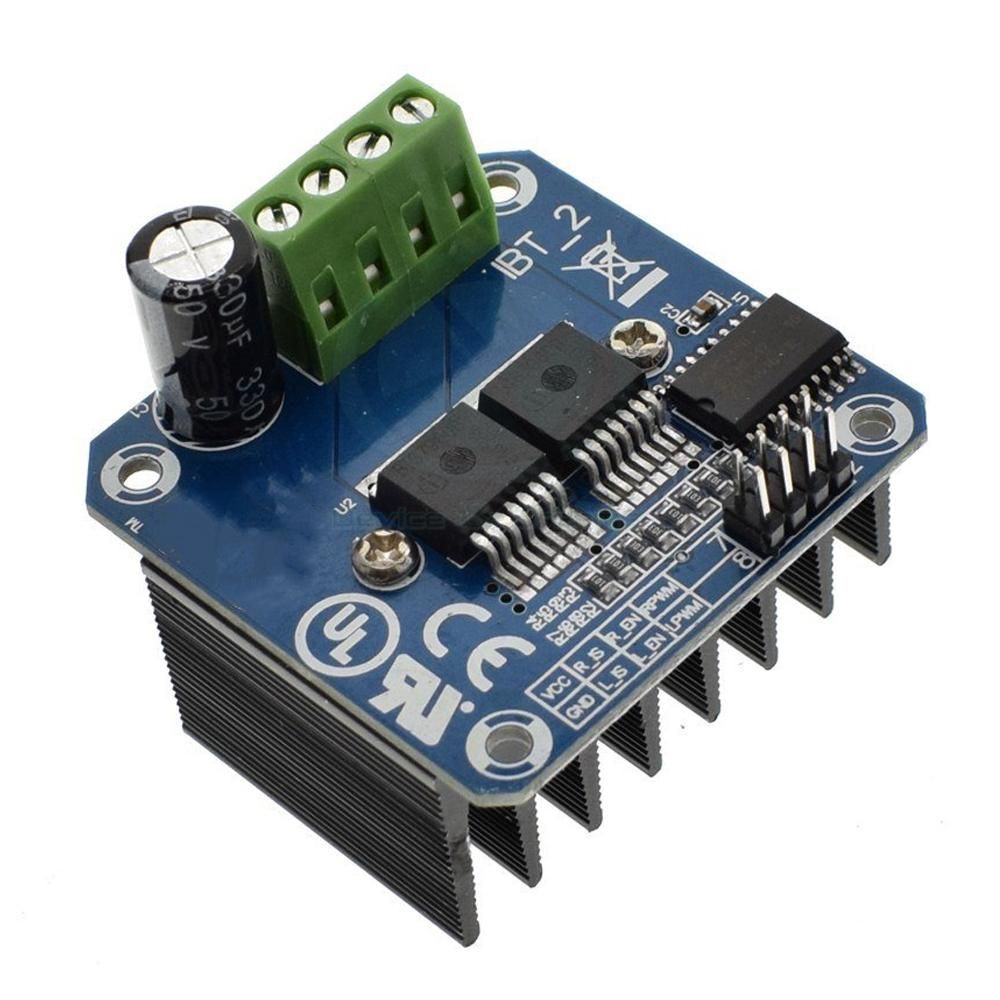

Double Bts7960 43A H-Bridge Motor Driver Module
- Input voltage: 6V-27V
- Maximum current: 43A
- Input level: 3.3-5V
- Control method: PWM or level
- Duty cycle: 0-100%
- Input port:
- RPWM: forward level or PWM signal input, active high
- LPWM: Reverse level or PWM signal input, active high
- R_EN: forward drive enable input, high-level enable, low level off
- L_EN: Reverse drive enable input, high-level enable, low level off
- R_IS: forward drive current alarm output
- L_IS: Reverse drive current alarm output
- VCC: +5 V power output, 5V power supply connection with the microcontroller
- GND: signal common low end
