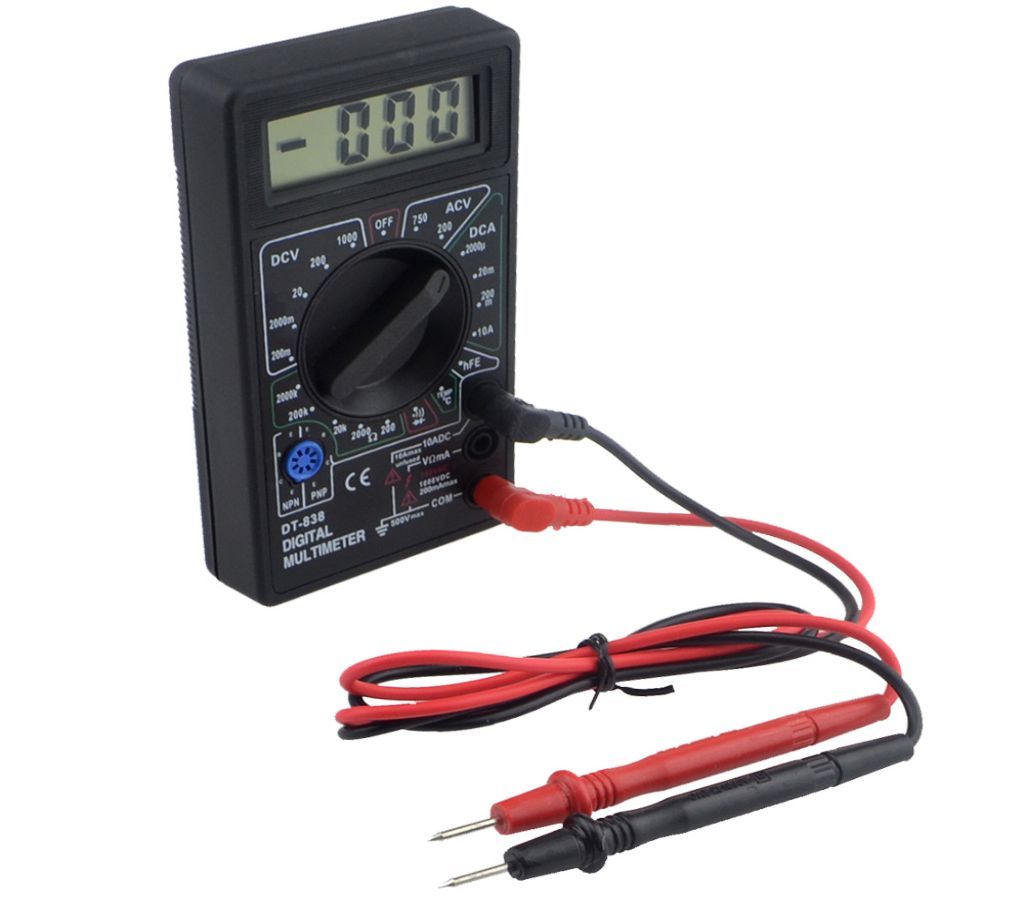

DT-838 Digital Multimeter
DT-838 ডিজিটাল মাল্টি মিটার
This meter features a mini size, light weight design, and 31/2 LCD display, which can provides various measurements for AC/DC voltage, AC current, resistance, diode, continuity, temperature, and hFE test. It is also with functions of low battery indication, overload indication, etc. More detailed product information, please refer to the English manual.
Features:
Digital LCD with a max reading of 1999(Digital Multimeter).
Audible continuity test.
Low battery indication.
Overload protection.
DC/AC Voltage, DC Current, resistance measurement.
Diode measurement.
Transistor hFE test.
Temperature test.
Specifications:
Model: DT-838
Main Color:Black
Power Supply: 1 * 9v battery
DC Voltage: 200mv ±1.0%, 2000m/20/200V ±1.2%, 1000v ±1.5%
AC Voltage_200/750V ±2%
DC Current_200μ/2000μ/20mA ±1.5%, 200mA ±2.0%, 10A ±3.0%
Resistance: 200/2000/20K/200K ±1.0%, 2000KΩ ±1.5%
Temperature: -20_-1370_ ±5%
Diode Test & Transistor & continuity buzzer test: Yes
Item dimension: 125 * 70 * 25mm
Item weight: 102g (with battery)
