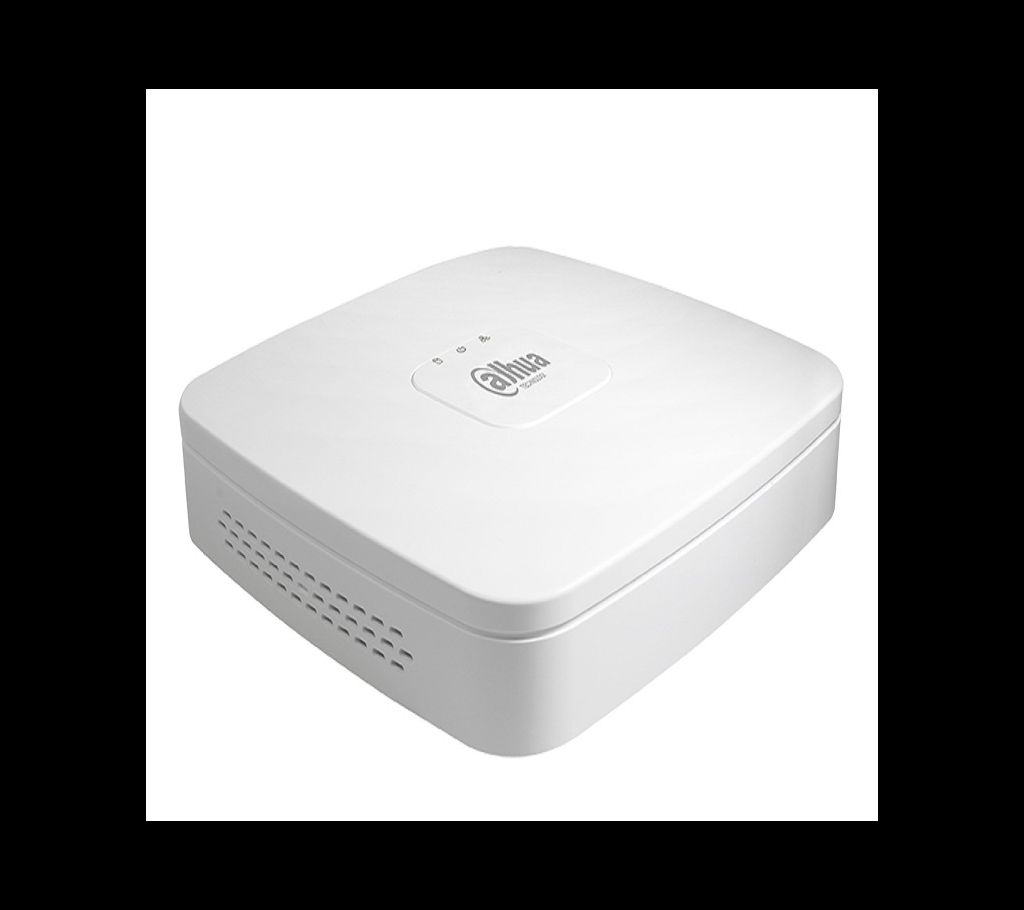

DVR-Dahua-DHI-XVR4108C-S2
8 Channel:
*Resolution:1080N/720P
*HDCVI/AHD/CVBS/TVI/IP
*Max HDD: 1*8TB & P2P
· Embedded processor
· H.264 video compression
· Support HDCVI/AHD/TVI/CVBS/IP video inputs
· Max 5/10 channels IP camera inputs
· Long transmission distance over coax cable
· Support 1 SATA HDD, up to 8TB
Technical Specification
System
Main Processor
Embedded Processor
Operating System
Embedded LINUX
Video and Audio
Analog Camera Input
4/8 Channel, BNC
HDCVI Camera
1080P@25/30fps, 720P@25/30fps
AHD Camera
1080P@25/30, 720P@25/30fps
TVI Camera
1080P@25/30, 720P@25/30fps
CVBS Camera
PAL/NTSC
IP Camera Input
4+1 Channel: each channel up to 2MP
8+2 Channel:each channel up to 5MP
Audio In/Out
1/1, RCA
Two-way Talk
Reuse audio in/out, RCA
Recording
Compression
H.264
Resolution
1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate
Main stream: 4CH:1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
8CH:1080N(1~12fps)/720P(1~15fps)/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Sub steram:4CH:CIF/QCIF(1~15fps)
8CH:CIF/QCIF(1~7fps)
Bit Rate
1Kbps ~ 6144Kbps Per Channel
Record Mode
Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Display
Interface
1 HDMI ,1 VGA
Resolution
1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display
When IP extension mode not enabled:
4CH: 1/4
8CH: 1/4/8/9
When IP extension mode enabled:
4CH: 1/4/6
8CH: 1/4/8/9/16
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface
1 RJ-45 Port (100M)
Network Function
HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Max. Us
