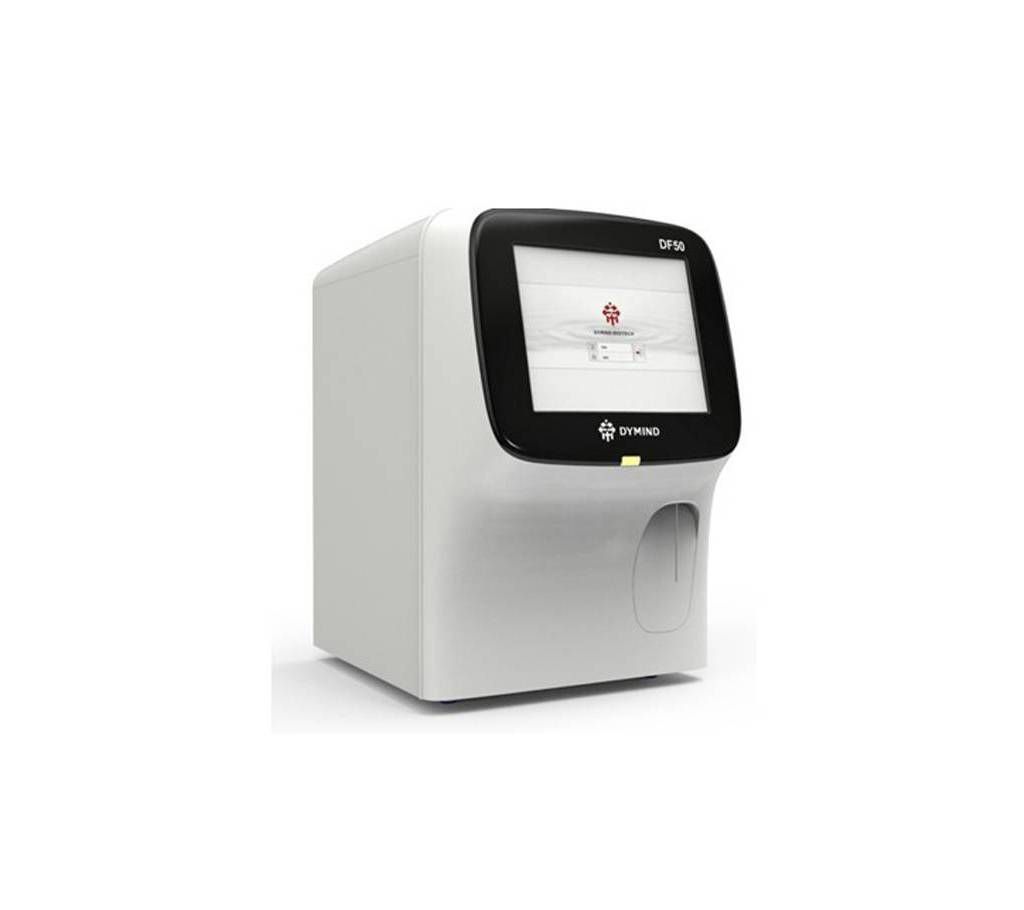

DYMIND DF50 Auto Hematology Analyzer
DYMIND DF50 Auto Hematology Analyzer is an analyzer for the thought laboratory that prioritizes character results. Equipped gone a large, color LCD display, intrinsical thermal printer and frightful storage accomplish, our fan-satisfying hematology analyzer brings the convenience of accord and exactitude of the suggestion laboratory right into your follow, providing most worth back low twist of reading of reading prices.
Features:
Laser scatter + Chemical dye + Flow cytometry
5-partdifferentiation, 27 parameters
Up to 60 samples per hour
Independent channel for Basophil measurement
10.4 inches high resolution TFT touch screen
Powerfulcapability to flag abnormal cells
Largestorage capacity: up to 50,000 samples
Recommended or customizable decision rules for re-exam abnormal samples
SupportUSB/LAN /bi-directional LIS and HL7
Support external inkjet and Laser Printer with various template&user defined template
Performance:
Parameter Linearity Range Precision Carryover
WBC 0-300*109/L _2%(4-15*109/L)_0.5%
RBC 0-8.5*1012/L _1.5%(3.5-6.0*1012/L)_0.5%
HGB 0-250g/L_1.5%(110-180g/L)_0.5%
PLT 0-3000*109/L_4.0%(100-500*109/L)_1.0%
Sample Volume:
Prediluted blood 20ul, whole blood 15ul
Throughput:
60 samples per hour
Operating Environment:
Temperature: 10oC-30oC
Humidity: 20-85%
Air pressure:
70kPa~106kPa
Power Requirement:
100-240V 50/60Hz
Dimension and Weight:
360mm(L) × 470mm(W) × 430mm(H)
Weight: 28kg
