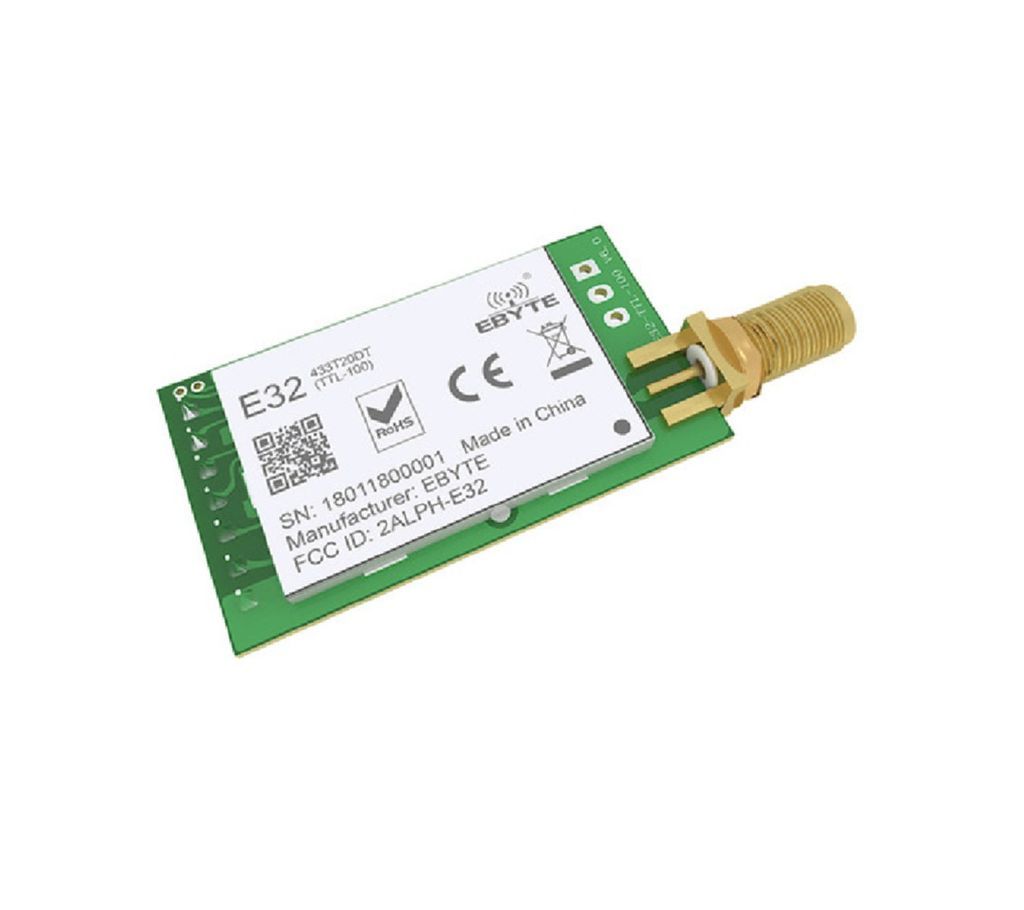

E32-433T20DT LoRa 433mhz 100mW (Distance:3000m)
Item specifics
Brand Name:CDEBYTE
Working Frequency:868MHz
Port Number:1
Model Number:E32-868T20D
Type:wireless module
Working Frenquency:868MHz
RF IC :SX1276
Is_customized:Yes
Supply Voltage:2.1 ~ 5.5V DC
Power:100mW
Packing :DIP
Size:21*36mm
Transmitting Distance:3000m
Interface :UART
Key word :lora 868mhz transceiver
Product Description
E32-868T20D Lora Long Range UART SX1276 868mhz 100mW SMA Antenna IoT uhf Wireless Transceiver Transmitter Receiver Module
Brand Ebyte IC SX1276
Model E32-868T20D Interface UART
Power 20dBm Distance 3000m
RF connector SMA-K Frequency 868MHz (862-893MHz)
E32-868T20D is a 100 mW wireless transceiver module with LoRa spread-spectrum technology, operates at 862~893MHz (Default: 868MHz), based on originally imported RFIC SX1276 from SEMTECH, transparent transmission is available, TTL level.
General parameters
Antenna type SMA-K 50Ω characteristic impedance
Operating temperature -40 ~ +85℃ –
Operating humidity 10% ~ 90% Relative humidity,No condensation
Storage temperature -40 ~ +125℃ –
Size 21*36mm –
Weight 6.7g Average weight
Connector 1*7*2.54mm Plug-in
Operation Range About 3000m Test condition: clear and open area& 20dBm, antenna gain:5dBi, height: 2m, air data rate: 2.4kbps
Communication interface UART 8N1, 8E1, 8O1,Eight kinds of UART baud rate, from 1200 to 115200 bps
Driving mode UART Can be configured to push-pull/high pull, open-drain
Transmitting length 512 bytes buffer 58 bytes per package
Receiving length 512 bytes buffer 58 bytes per package
Electrical parameters
Frequency Band 862 – 893MHz Default: 868MHz, channel:32
Supply voltage 2.1 – 5.5V DC 5V (recommended)
Communication voltage Maximum 5.2V –
