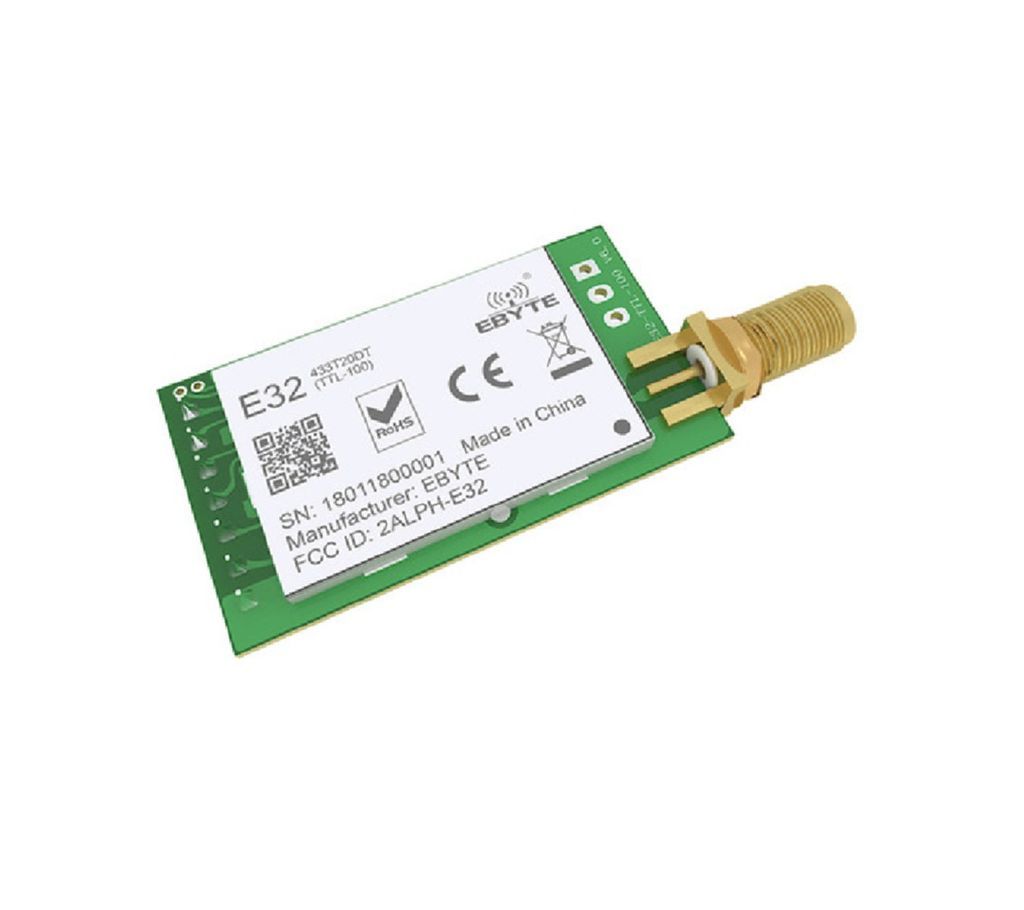

E32-433T30D Lora 433mhz 1W [Distance] : 8.0km
Item specifics
Brand Name:CDEBYTE
Model Number:E32-433T20DT
Size :21*36mm
Power:20dBm
Frequency :433MHz (410-441)
[Distance] : 8.0km
Interface:UART
Antenna type :SMA-K
Supply Voltage :2.3-5.5V
Key words :433mhz rf wireless receiver module
RF IC :SX1278 SX1276
Product Description
E32-433T20DT LoRa Longe Range UART SX1278 433mhz 100mW SMA Antenna IoT uhf Wireless Transceiver Transmitter Receiver Module
RF Parameter Value Remark
Working frequency 410~441 MHz Default: 433MHz
Transmitting power 10~20 dBm Default: 20dBm（About 100mW）
Receiving sensitivity -146 dBm Air data rate: 0.3kbps
Air data rate 0.3k~19.2kbps Default: 2.4kbps
Test distance 3000 meter In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,
air data rate: 2.4kbps
Hardware Parameter Value Remark
Size 21 * 36 mm Without SMA
Antenna type SMA-K
Communication interface UART Baud rate: 1200~115200, default: 9600
Package DIP
Buffer 512 bytes buffer Automatically sub-packaging with 58 bytes per package
Electronic parameter Min. Typ. Max. Unit Condition
Power supply 2.3 3.3 5.5 V
Communication level 3.0 3.3 3.6 V
Transmitting current 102 110 118 mA 20dBm（100mW）
90 93 96 mA 10dBm（50mW）
Receiving current 12 15 18 mA
Sleep current 3 5 8 μA
Operating temperature -40 20 +85 ℃
Operating humidity 10 60 90 %
Storage temperature -40 20 +125 ℃
