Earth Grounded Resistance Tester Meter VICTOR 4105A
Earth Grounded Resistance টেস্টার মিটার VICTOR 4105A
DESCRIPTION
Detail:

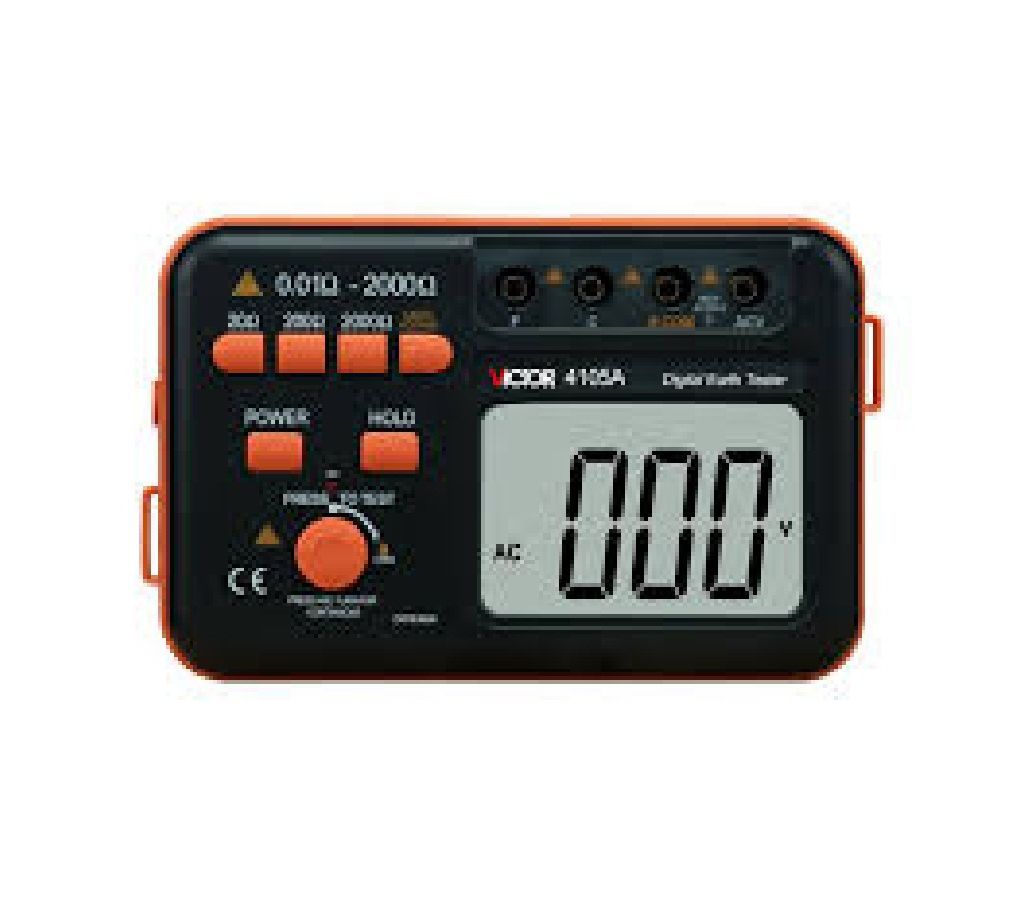

4105A ground resistance tester
This digital ground resistance tester is a new generation of electrical test instruments, beautiful and practical style.
Full-featured, high accuracy, convenient and reliable operation, dustproof moisture-proof structure, better suited to field use.
It can be used to measure a variety of power systems, electrical equipment, lightning protection equipment grounding system grounding resistance value, it can also measure AC voltage
Basic function
Measure mode range resolution Basic accuracy
Ground resistance 20Ω 0.01Ω ±(2%+0.1Ω)
200Ω 0.1Ω ±(2%+3dgt)
2000Ω 1Ω
Ground current ( AC current) 200V 0.1V ±(2.0%+6dgt)
General features
Display 84.8×59.8mm LCD display, max display “1999”.
Over range presentation it will display “1”on the top number when it is over range
Power alkalescence battery LR (1.5V)×8(can contact with power adapter)when the battery is low, it will display a low battery sign
Power Dissipation Electricity cost during test<=800mw
Work environment Teperature 0-40 ; relative humidity 30%-80%RH
Product size 175(L)×110(W)×70(D)mm
Weight Approx : 680g(include battery)
