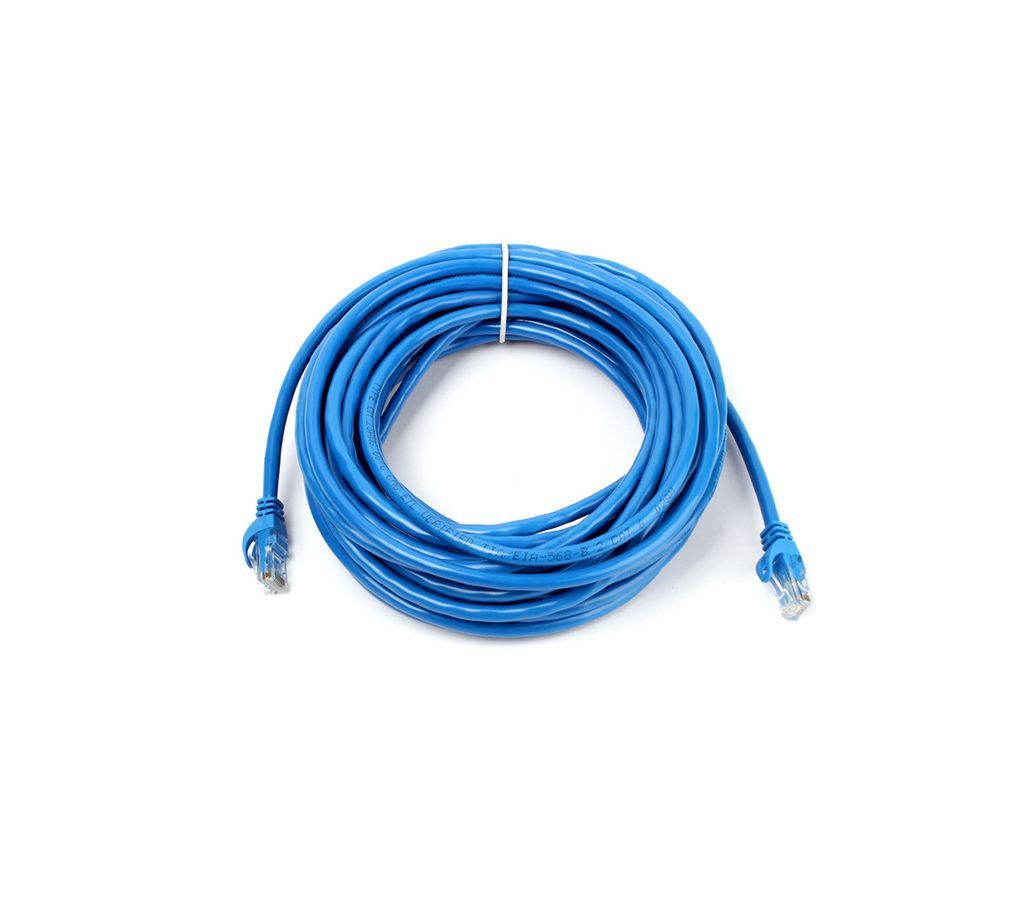

ethernet cable
ইথারনেট ক্যাবল
UTP CAT6 : Unshielded Twisted Pair
Conductor / Number of Pairs : 4 Pairs
Total No of Conductors : 8
AWG Size : 24
Stranding : Solid
Conductor Material : Bare Annealed Copper
Insulation Material : PO - Polyolefin
Outer Shield Material : Unshielded
Outer Jacket Material : PVC
Outer Jacket Ripcord : Yes
Overall Nominal Diameter 5.80 ± 0.50mm
Operating Temperature Range -20°C To +80°C
Nom. Mutual Capacitance @ 1 KHz : 5.6 nF/100m
Maximum Capacitance Unbalance : 330 pF/100m
Nominal Velocity of Propagation : 70%
Maximum Delay @ 100 MHz : 538 ns/100m
Maximum Conductor DC Resistance @ 20 Deg.C : 9.38 Ohms/100m
