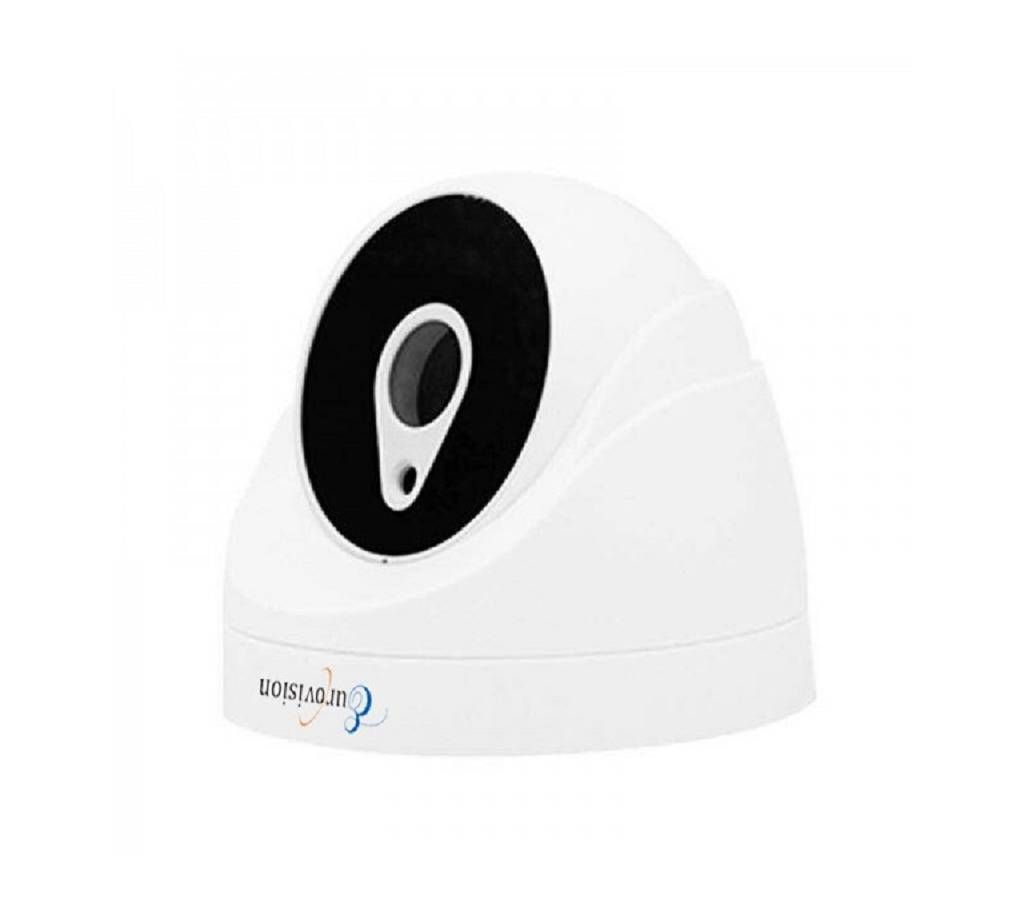

EV-IPC100-PD 2.0MP Network Camera
EV-IPC100-PD 2.0MP নেটওয়ার্ক ক্যামেরা
Image Sensor: 1/2.7" 2MP CMOS Sensor
Resolution : 2MP
Effective Pixels: 1080*1920
Compression: H.265/H.264/MJPEG
TV System : PAL/NTSC
Frame Rate: MAX 20 FPS
Bit Rate: 256Kbps～8Mbps
Synchronization: Internal
SNR: ≥37dB
Min Illumination: 0 Lux (IR ON)
Focus Mount: M12
Lens: 3.6mm
Angle of view: 3.6mm:108.8°
Focus Control: Manual
Exposure : Mode Auto
Gain Control: Auto
White Balance: Auto
Digital Noise Reduction: 3D DNR
Network Time: Support
Scheduled Restart: Support
ROI: Support
IR Sensitivity: Adjustable
Defog: N/A
Privacy Mask: Support 4 rectangle areas
Motion Detection: Support
Video Adjust: Supports contrast, brightness, saturation, sharpness adjustment
Scene: Support Indoor, Outdoor, Default, Soft scenes
Day & Night: IR cut filter with auto switch，Support Color to Black
Corridor Mode: N/A
Electronic screen: Support Exposure time setting, solve view electronic screen problem
Night Self-Adaption : Support
Wide Dynamic Range: N/A
Image setting: Mirror, Rotate
IP Self-Adaption: Support
Alarm: E-mail, Client
Remote Operation : System, Stream, User, Network Management
Ethernet: 1 RJ45 10M/100M Adaptive Ethernet Interface
Tri Stream: Support
Protocol: Support HTTP,TCP/IP, ICMP.RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, PPPOE, P2P
System Compatibility: ONVIF 2.5
Transmission: Internal NVSIP Protocol
Browser: IE8+,Chrome18+,Firefox5.0+,Safari5.02+ browsers
User Permission: Up to 13 users,Three level authority: Administrator, User, Visitor
IR Distance: 20m
Power Supply:DC 12V / 1A
Audio in: Built-in
POE Power: Optional
Working Temperature: -20℃～+60℃
Working Humidity: 10%～90%
Power: Day:＜2W Night:＜6W
Material: Plastic
Size((W×H×D)（mm）: 128*111*111mm
Weight（g）: ≤230g
