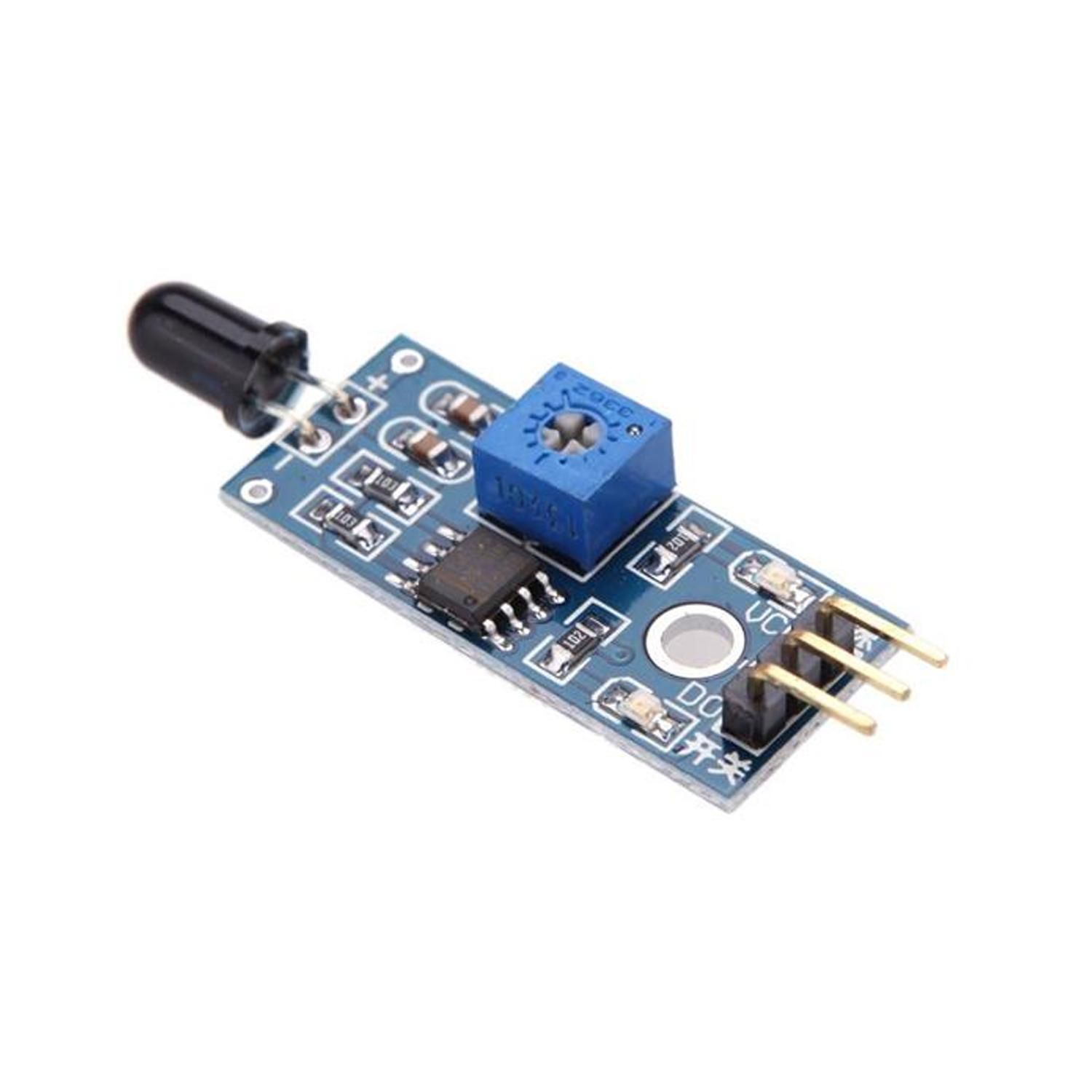

Flame Sensor fire detection module
- Detection angle about 60 degrees, it is sensitive to the flame spectrum.Accuracy adjustable
- Operating voltage 3.3V-5V
- Digital switch outputs (0 and 1)
- With a mounting screw holePCB size: 3cm * 1.6cm
- Power indicator (red) and digital switch output indicator (green)
- Comparator chip LM393 ,it is stable.
- Flame detection distance, lighter flame test can be triggered within 0.8m, if the intensity of flame is high , the detection distance will be increased.
- On board, digital output interface can be directly connected with the microcontroller IO.
