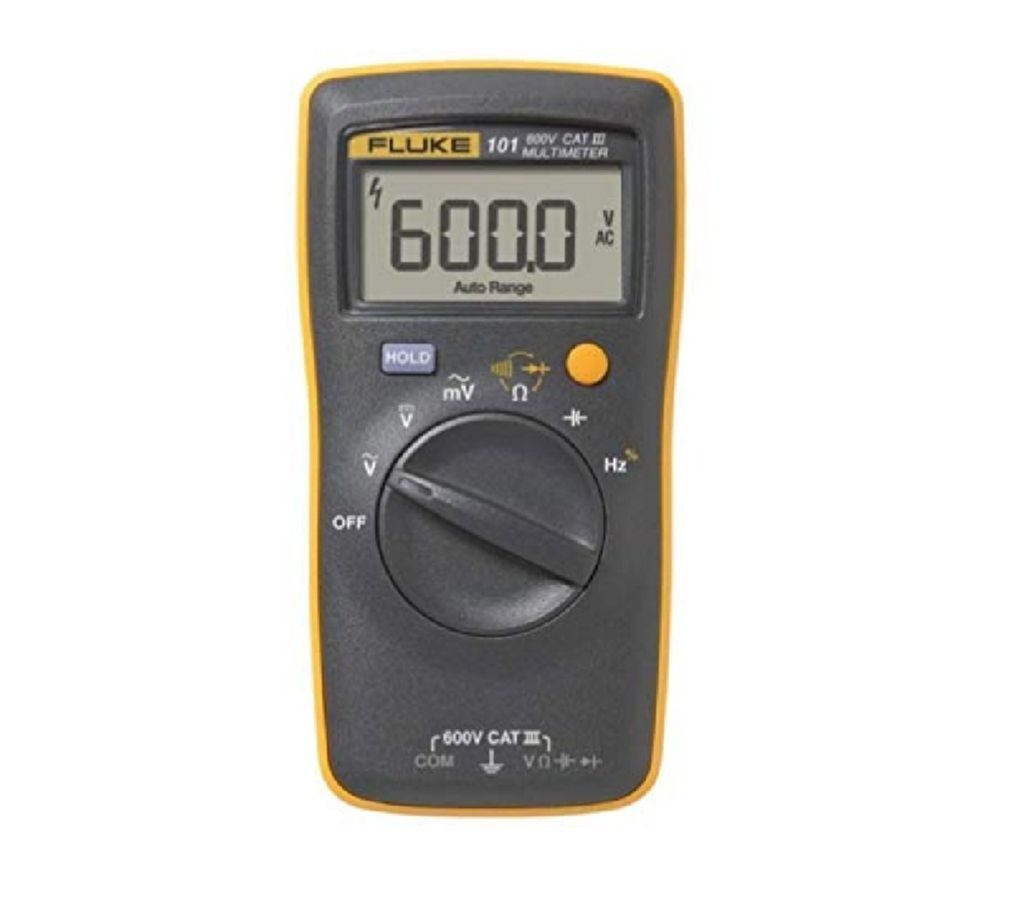

Fluke 101 Digital Multimeter
Fluke 101 ডিজিটাল মাল্টিমিটার
Description :
FLUKE F101 600V CAT Ⅲ Pocket Mini Digital Multimeter Auto Range
Widely used for testing resistance, on/off, diode, capacitor, frequency and voltage, AC/DC voltage can be up to 600V, basic DC accuracy is 0.5%, this is indeed a professional and preferred digital multimer for the elecrical people.
Specification :
Brand Name : FLUKE
Model Number : F101
Maximum input voltage
600V
LCD Display
6000 words refresh rate 3/second
Power supply
2 AAA, NEDA 24A, IEC LR03
Battery life
More than 200 hours
Operating temperature
0 °C to 40 °C
Storage Temperature
-30 °C to 60 °C
Operating relative humidity
Non-condensing 10 °C 90% at 10 °C to 30 °C; 75% at 30 °C to 40 °C
Operating relative humidity range 40M
80% at 10 °C to 30 °C; 70% at 30 °C to 40 °C (Without Consideration)
Operating altitude
2000 m
Storage altitude
12,000 m
Temperature Coefficient
0.1 x (specified accuracy)/°C or/u003c18 °C or/u003e 28 °C
Dimensions (H*W*L)
130 mm x 65 mm x 27mm
Weight
160 g
IP Rating
IEC 60529 : IP 40
Security Level
IEC 61010-1 : 600 V CAT III, Pollution Degree 2
Electromagnetic interference
IEC 61326-1 : Class handheld
Reference parameter :
Function Range Resolution Accuracy +/- % of(reading + minimum resolution)
AC voltage v(40Hz-500Hz) 6.000V 0.001V 1% +3
60.00V 0.01V
600.0V 0.1V
DC voltage 6.000V 0.001V 0.5% +3
60.00V 0.01V
600.0V 0.1V
AC millivolt 600.0 mV 0.1mV 3% +3
Diode test 2.000V 0.001V 10%
Resistance 400.0 0.1 0.5% + 3
4.000 k 0.001 k 0.5% + 2
40.00 k 0.01 k 0.5% + 2
400.0 k 0.1 k 0.5% + 2
4.000 M 0.001 M 0.5% + 2
40.00 M 0.01 M 1.5% + 3
Capacitance 50.00 nF 0.01 nF 2% + 5
500.0 nF 0.1 nF 2% + 5
5.000 F 0.001 F 5% + 5
50.00 F 0.01 F 5% + 5
500.0 F 0.1 F 5% + 5
1000 F 1 F 5% + 5
Frequency(10Hz-100KHz) 50.00 Hz 0.01 Hz 0.1% + 3
500.0 Hz 0.1 Hz
5.000 kHz 0.001 kHz
50.00 kHz 0.01 kHz
100.0 kHz 0.1 kHz
Duty Cycle 1% -99 % 0.1% 1% typ
