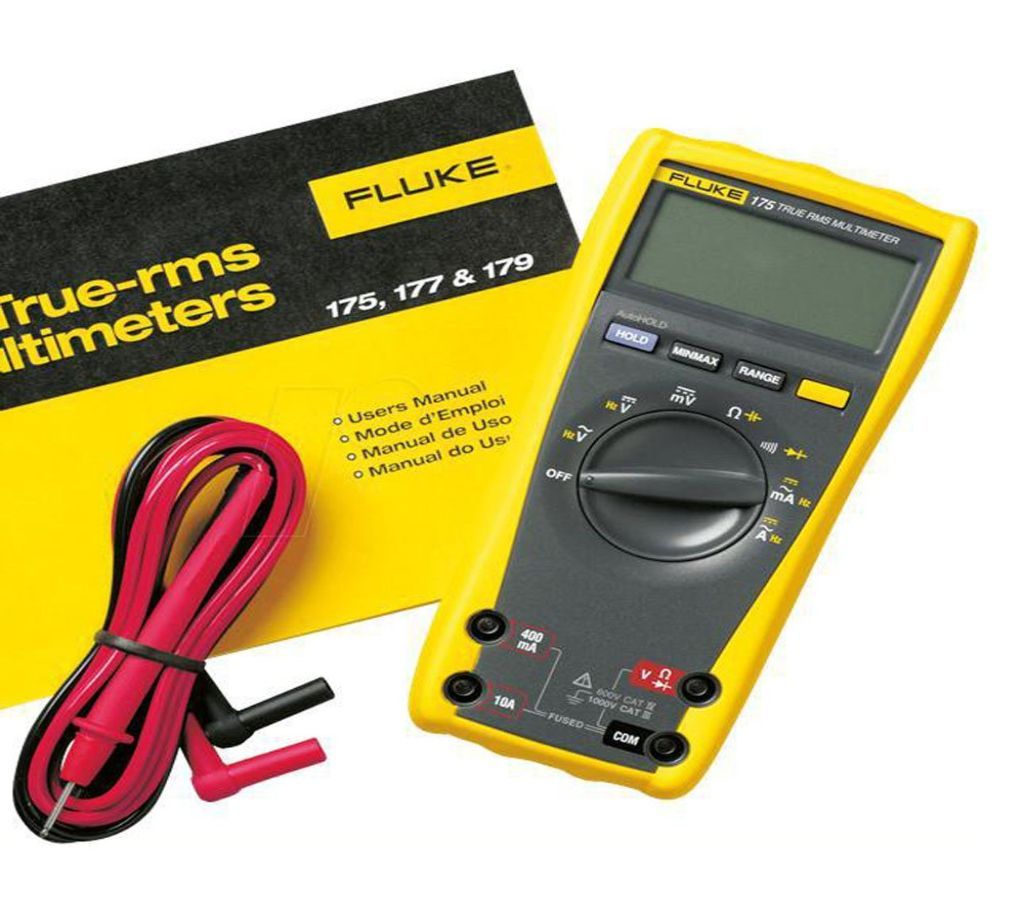

Fluke 175 True RMS Digital MultiMeter Original Made In USA
Fluke 175 True RMS ডিজিটাল মাল্টিমিটার Original Made In USA
Specifications: Fluke 175 True-RMS Digital Multimeter
Specifications
Voltage DC Accuracy1 ±(0.15% + 2)
Max. resolution 0.1 mV
Maximum 1000 V
Voltage AC Accuracy1 ±(1.0% + 3)
Max. resolution 0.1 mV
Maximum 1000 V
Current DC Accuracy1 ±(1.0% + 3)
Max. resolution 0.01 mA
Maximum 10 A
Current AC Accuracy1 ±(1.5% + 3)
Max. resolution 0.01 mA
Maximum 10 A
Resistance Accuracy1 ±(0.9% + 1)
Max. resolution 0.1 Ω
Maximum 50 MΩ
Capacitance Accuracy1 ±(1.2% + 2)
Max. resolution 1 nF
Maximum 10,000 µF
Frequency Accuracy1 ±(0.1% + 1)
Max. resolution 0.01 Hz
Maximum 100 kHz
1. Accuracies are best accuracies for each function
Environmental Specifications
Operating temperature -10°C to +50°C
Storage temperature -30°C to +60°C
Humidity (without condensation) 0% – 90% (0°C – 35°C)
0% – 70% (35°C – 50°C)
Safety Specifications
Overvoltage category EN 61010–1 to 1000 V CAT III
EN 61010–1 to 600 V CAT IV
Agency approvals UL, CSA, TÜV listed and VDE Pending
Mechanical and General Specifications
Size 43 x 90 x 185 mm
Weight 420 g
Warranty Lifetime
Battery life Alkaline ~200 hours typical, without backlight
