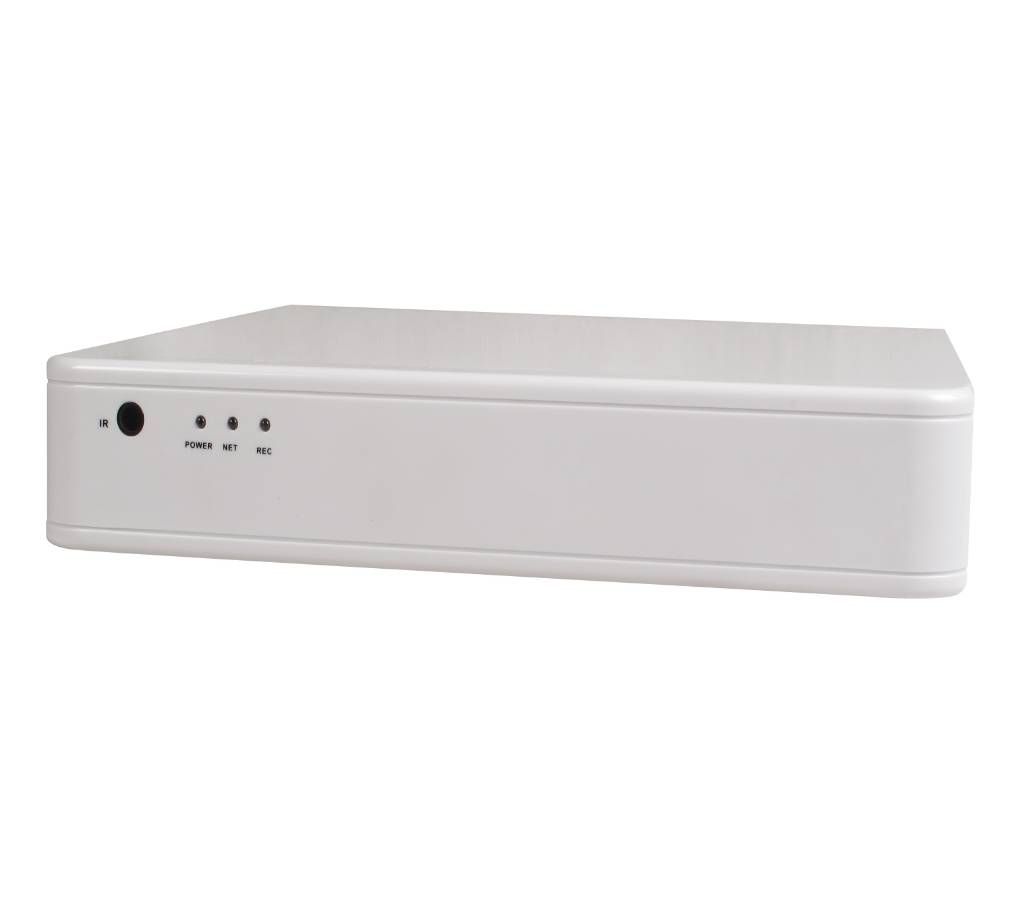

FULL HD 8CH 1080P 5in1 Hybrid DVR
FULL HD 8CH 1080P 5in1 হাইব্রিড DVR
Model NO. LS-HVR9108
Media Processor High-performance processor HI3521A
Compression H.264 Standard compression
Monitor image quality 1080P(1920×1080)
Image dynamic detection Multiple detection areas in each channel
The video frame rate 1080P 15FPS/CH
Image playback quality 1080P TOTAL:30 FPS(2 CH)
Hybrid Mode
1.AHD / TVI / CVI:4CH 1080P@15fps recording, 2CH 1080P playback；
2. HVR:2CH 1080P@25fps Analog + 2CH 1080P@25fps IP recording, 2CH
1080P@25fps playback；
3.NVR:4CH 1080P@25fps IP recording, 4CH 1080P@25fps playback；
Video mode Support manual, automatic, dynamic monitoring, alarm trigger video mode
Backup mode U disk, USB portable disk, USB burn, Network storage and backup
Operate mode Mouse
login locally admin and password
Save recording local hard disk and network
Onvif Support standard ONVif 2.4 protocol
External interface
Video input 1080P@15FPS, Audio input 4×RCA
Video output 1*VGA,1*HDMI ，1*CVBS, Audio output 1×RCA
Network interface 10M/100M base-T Ethernet (RJ-45)
USB connect port 2 个USB 2.0 接口2 x USB 2.0
RS485 RS485*1, Alarm input 4CH, Alarm output 1CH
Hard disk Internal HDD 1 SATA HDD port
Maximum capacity Maximum 4TB
Power 12V/4A
