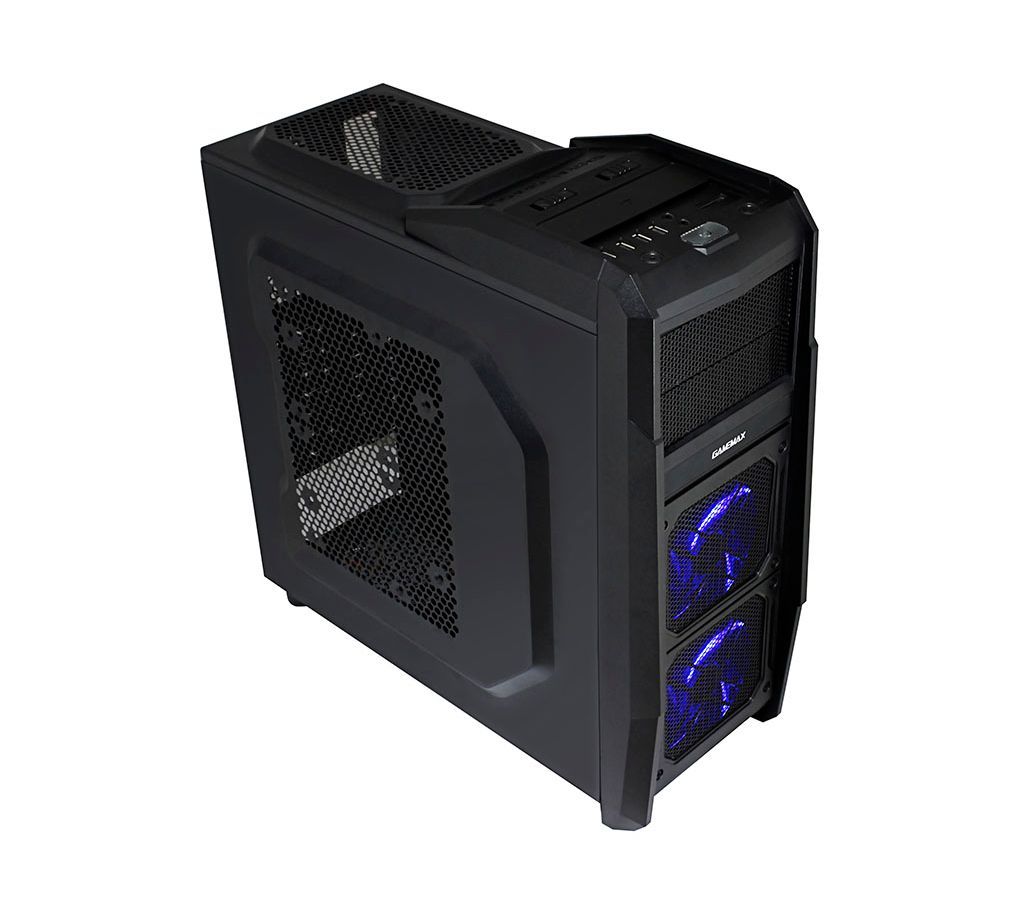

GAMEMAX COMPUTER CASE GAMING SERIES
গেম ম্যাক্স কম্পিউটার কেস গেমিং সিরিজ
Model:G-506
Brand Name: GAMEMAX
Graphic card size: up to 15” (380 mm) extra long cards
Cooling System:
2 x 120 mm front intake fans
1x 120 mm Rear fan
2 x 120 mm top exhaust fans (optional)
1 x 120 mm side fan to cool graphic cards (optional)
Maximum CPU cooler height:up to 158 mm
Drive Bays: 2 x 5.25" tool-less drive bays；1 x 3.5"external
4 x 3.5" tool-less HDD bays；1 x 2.5" SSD
Top Ports: 1 x USB 3.0+3xUSB2.0；Audio In/Out；2 x Fan control (High/off/Low)
Expansion Slots: 7 x PCI-E
Motherboard Support: Standard ATX, Micro ATX, Mini-ITX
Cable Management: cable routing space behind motherboard
Cable routing holes
Chassis Size: D*W*H:410*185*412mm
Carton Size：（L）440mm*（W）185mm*（H）438mm
NW/GW： 3.6KG/ 4.6KG
X5 chassis, 0.5mm Case in black, Black Chassis inside
USB3.0*1+3xUSB2.0, HD_Audio Port+card-reader
Handy Screw, Bays with Tool-less Kit
Fan controll x 2 Channel (FAST-STOP-SLOW)
Multi-media card-reader -Build-in
Front panel :12cm led fan *2
Rear panel :12cm black fan *1 .
