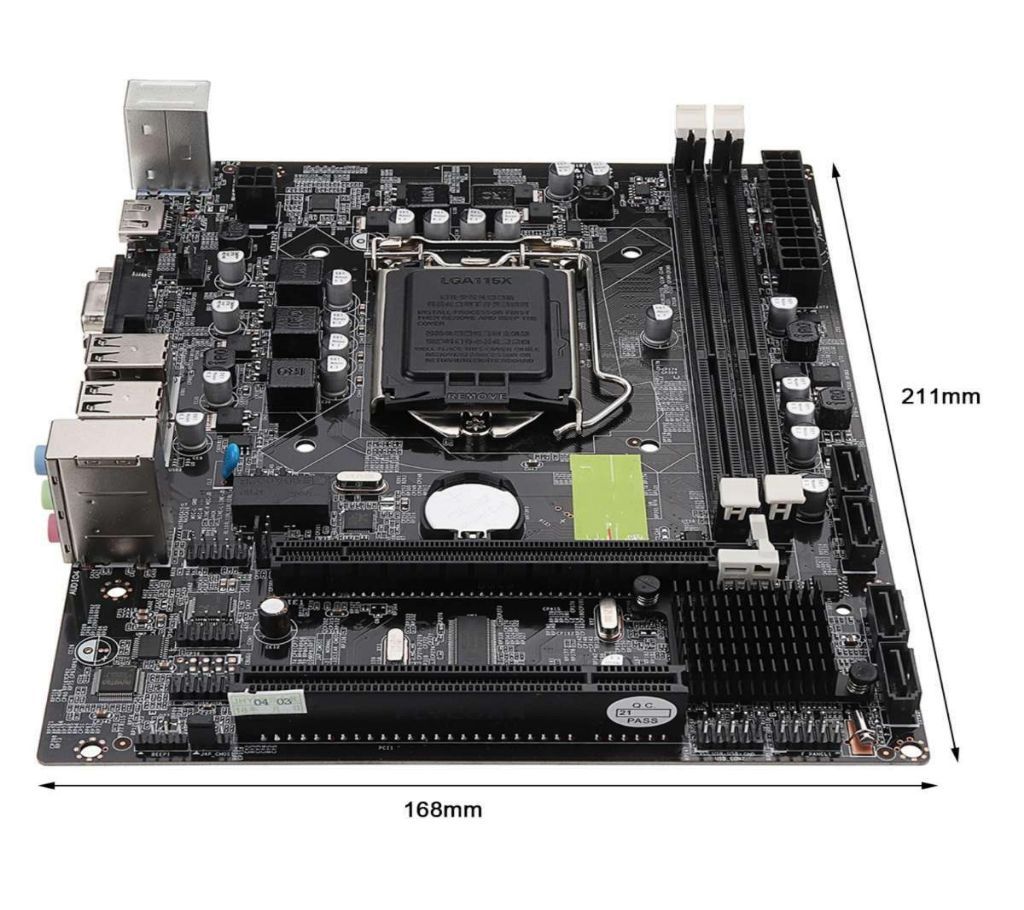

H55 Intel Chipset Motherboard with HDMI
H55 Intel Chipset মাদার বোর্ড with HDMI
CPU Support: LGA1156 Socket I3/I5/I7 series Processor
Chipset: Intel H55 Chipset
Memory: 2*240-pin DDR3 SDRAM Slots
Memory Up to 16GB
Support Dual-channel DDR3 10600/1600MHz memory
I/O interface:
1x VGA
1x HDMI
6x USB 2.0, Compatible with USB 1.1
3x Audio port ( Line In / Line Out/ MIC In)
1x RJ45 LAN
Onboard interface:
1x 24-pin ATX Power Connector
1x 4-pin ATX 12V Power Connector
2x USB Connector, can support 4*USB 2.0
1x F_AUDIO Connector
1x F_PANEL Connector
1x SPEAKER Connector
2x FAN Connectors
3x Serial ATX Connector port
1x mSATA
Integrated sound:
with 6-channel HD Audio Codec onboard
Provides front audio interface; provides front stereo mic interface
Integrated LAN: with 10/1000Mbps LAN onboard
Expansion Slot: 1x PCI Express 16x slot
Dimension: Micro-ATX architecture (168x190mm)
Made in China
