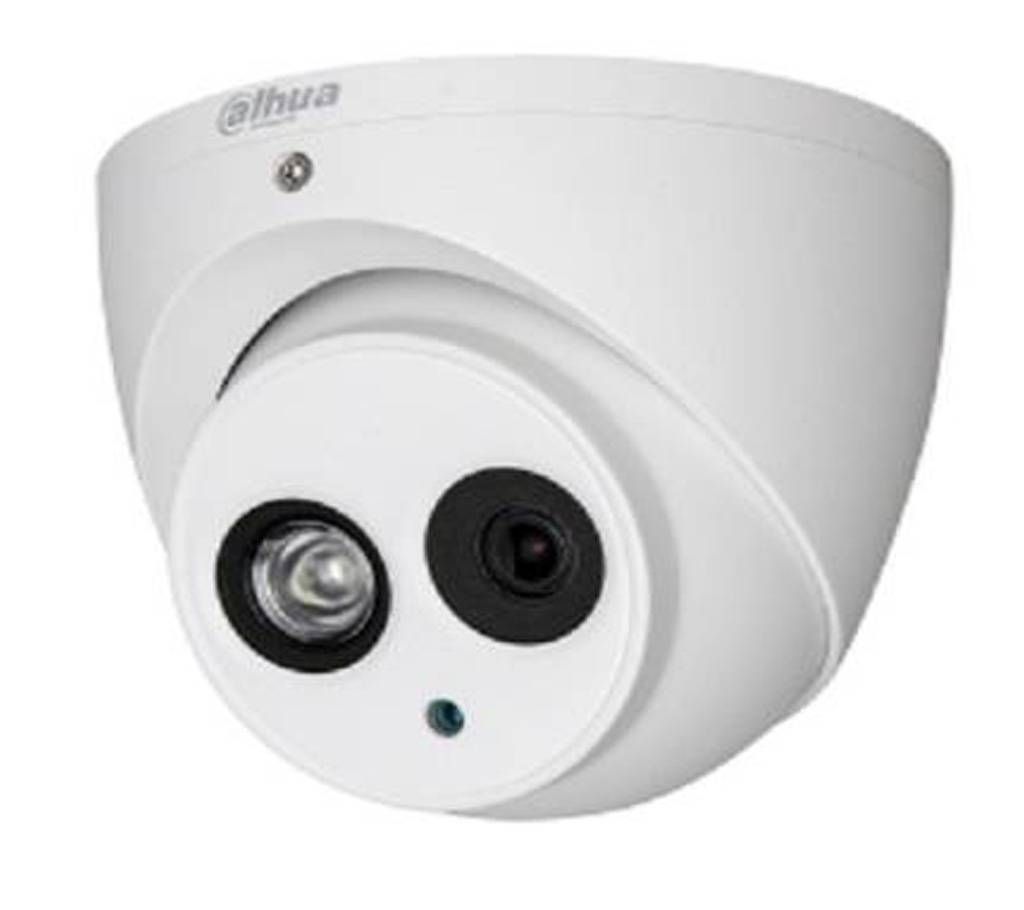

HAC-HDW-1200E 2MP HDCVI IR Eyeball Camera
HAC-HDW-1200E 2MP HDCVI IR আইবল ক্যামেরা
HAC-HDW-1200E 2MP HDCVI IR Eyeball Camera
Max 30fps@1080P
HD and SD output switchable
3.6mm fixed lens (6mm optional)
Max. IR length 50m, Smart IR
IP67, DC12V
HAC-HDW-1200E Camera Specification
Image Sensor 1/2.7″ CMOS
Effective Pixels 1920(H)×1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination 0.02Lux/F2.0, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 50m (164feet)
IR On/Off Control Auto / Manual
IR LEDs 1
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (6mm Optional)
Max Aperture F2.0
Angle of View H: 89.9°(59.4°)
Focus Control N/A
Close Focus Distance 600mm (1800mm)
23.62” (70.87”)
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 360°
Tilt: 0° ~ 78°
Rotation: 0° ~ 360°
Video
Resolution 1080P (1920×1080)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface N/A
Eelectrical
Power Supply 12V DC ±25%
Power Consumption Max 3.2W (12V DC, IR on)
Environmental
Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection &Vandal Resistance IP67
Construction
Casing Aluminium
Dimensions Φ106mm×93.7mm (Φ4.17″×3.69″)
Net Weight 0.44kg (0.97lb)
Gross Weight 0.58kg (1.28lb)
