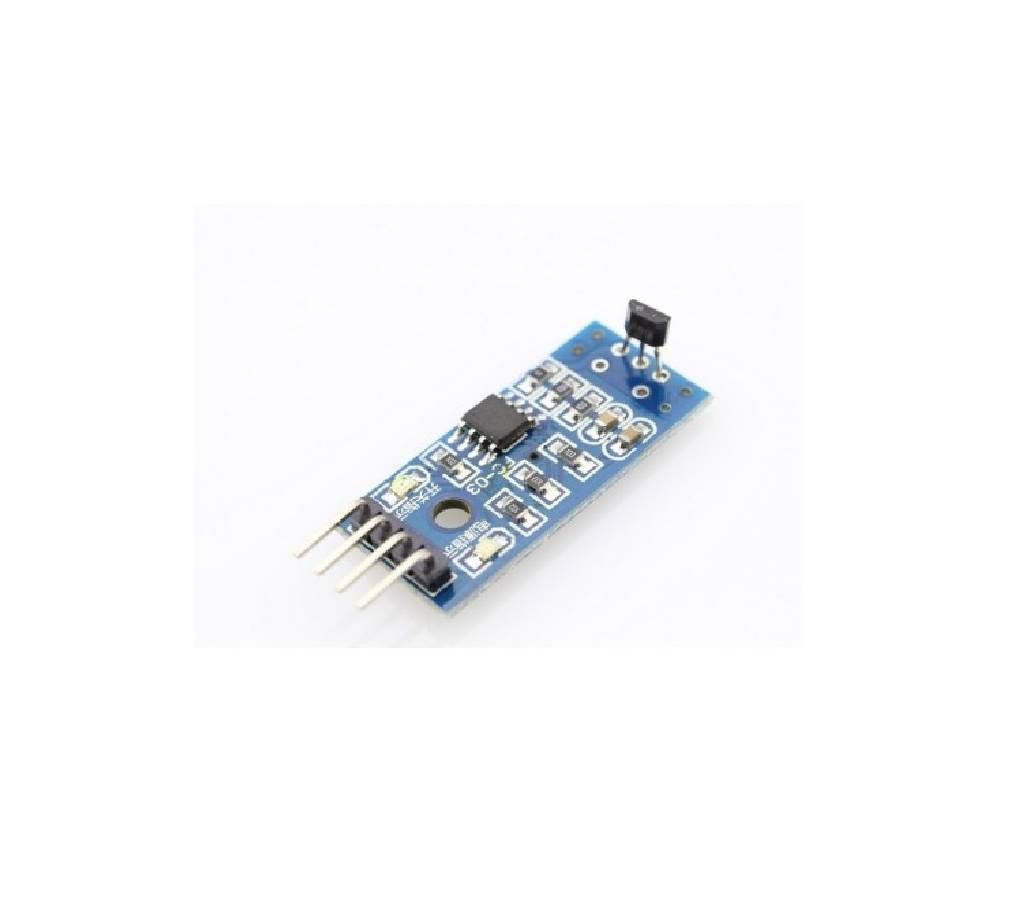

Hall Effect Sensor Module
হল ইফেক্ট সেন্সর মডিউল
Hall Effect Sensor Module This module can be used to detect the presence of an magnetic field.
If there is an magnetic field present, it will report a high level signal. It can be used in many applications such as RPM sensor (for counting the number of shaft revolutions), Robot speed and distance measurements, door switch and robot arm position sensor. Generally, it can be used for any magnetic field detection.
Features S49E hall sensor Features wide range voltage comparator LM393 Adjustable sensitivity (potentiometer)
Signal output indicator Analog / Digital output Specifications Volt: 2.3V ~ 5.3V
Dimension: 27.0mm * 15.5mm Mounting holes size: 2.0mm Applications Motor shaft speed measurement (shaft encoder) Object position detection How to Use In the case of working with Arduino / microntroller /Raspberry: VCC ↔ 2.3V ~ 5.3V GND ↔ power supply ground AOUT (analog sensor output) ↔ Arduino/ MCU input DOUT (digital sensor output) ↔ Arduino/MCU input
