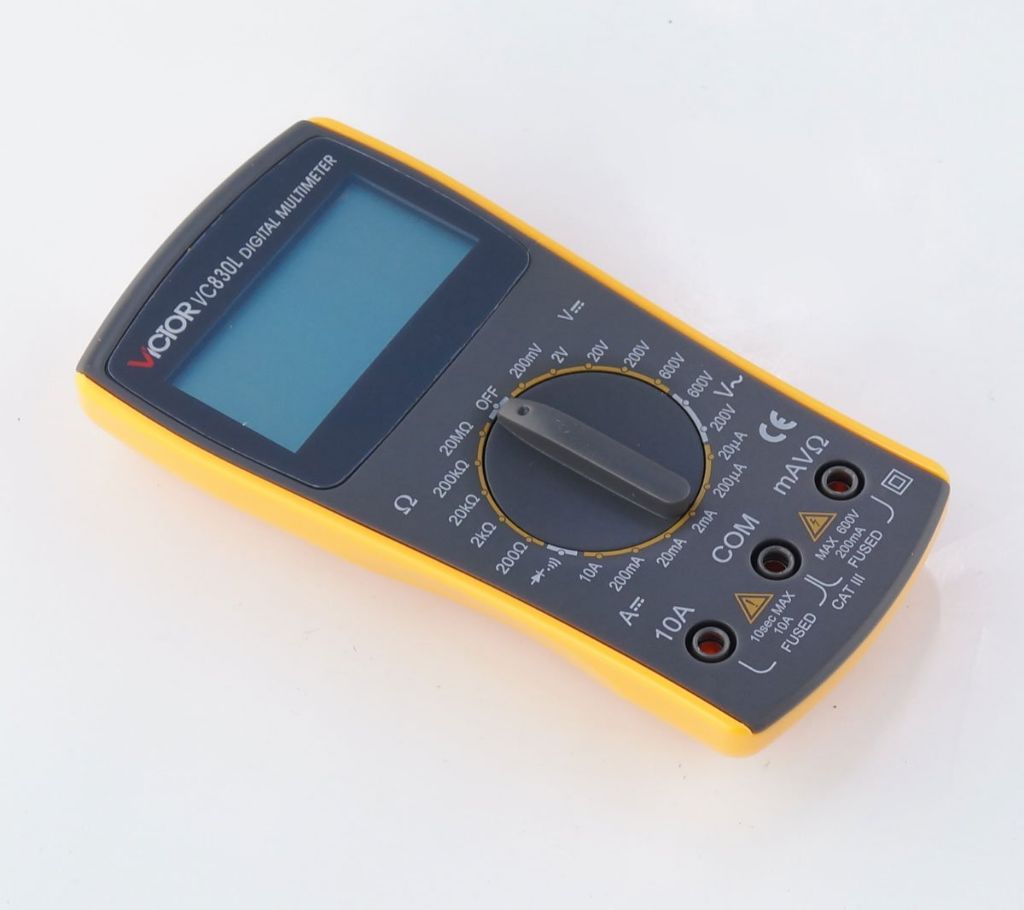

Handheld 3 1/2 Digital VICTOR VC830L Multimeter 600V AC/DC MeterHandheld 3 1/2 Digital VICTOR VC830L Multimeter 600V AC/DC MeterHandheld 3 1/2 Dig
Handheld 3 1/2 Digital VICTOR VC830L ডিজিটাল মাল্টিমিটার 600V AC/DC MeterHandheld 3 1/2 Digital VICTOR VC830L Multimeter 600V AC/DC MeterHandheld 3 1/2 Dig
Features:
New type holster, streamline design
Large LCD makes the reading clearly
Metallic screen board with stronger antimagnetic and anti-interferential function.
Full function protection, anti-high voltage circuit design
New type battery case design ,it’s easy to change battery .
Specifications:
Basic Function
Range
Basic accuracy
DC Voltage
200mV/2V/20V/200V/600V
±(0.5%+4)
AC Voltage
200V/600V
±(1.2%+10)
DC Current
20uA/200uA/2mA/20mA/200mA/10A
±(1.5%+3)
Resistance
200Ω/2kΩ/20kΩ/200kΩ/20MΩ
±(0.8%+5)
Special Function
VC830L
Diode test√
Continuity buzzer√
Low battery indication√
Input impedance
10MΩ
Sampling rate
3times/s
AC frequency response
(40-400)Hz
Operation way
Manual range
Max. Display
1999
LCD size
57×33mm
Battery
9V(6F22)
General Characters
Product color
Case: dark gray ;
Product Net Weight
Approx. : 150g(include battery )
Product Dimension
138×72×35mm
Standard Accessories
Test leads / battery /instruction manual
Standard inner packing
Color box
Standard Quantity Per Carton
60Pcs
Carton Size
470×325×350mm
Standard Gross Weight
Approx. : 20 kg
