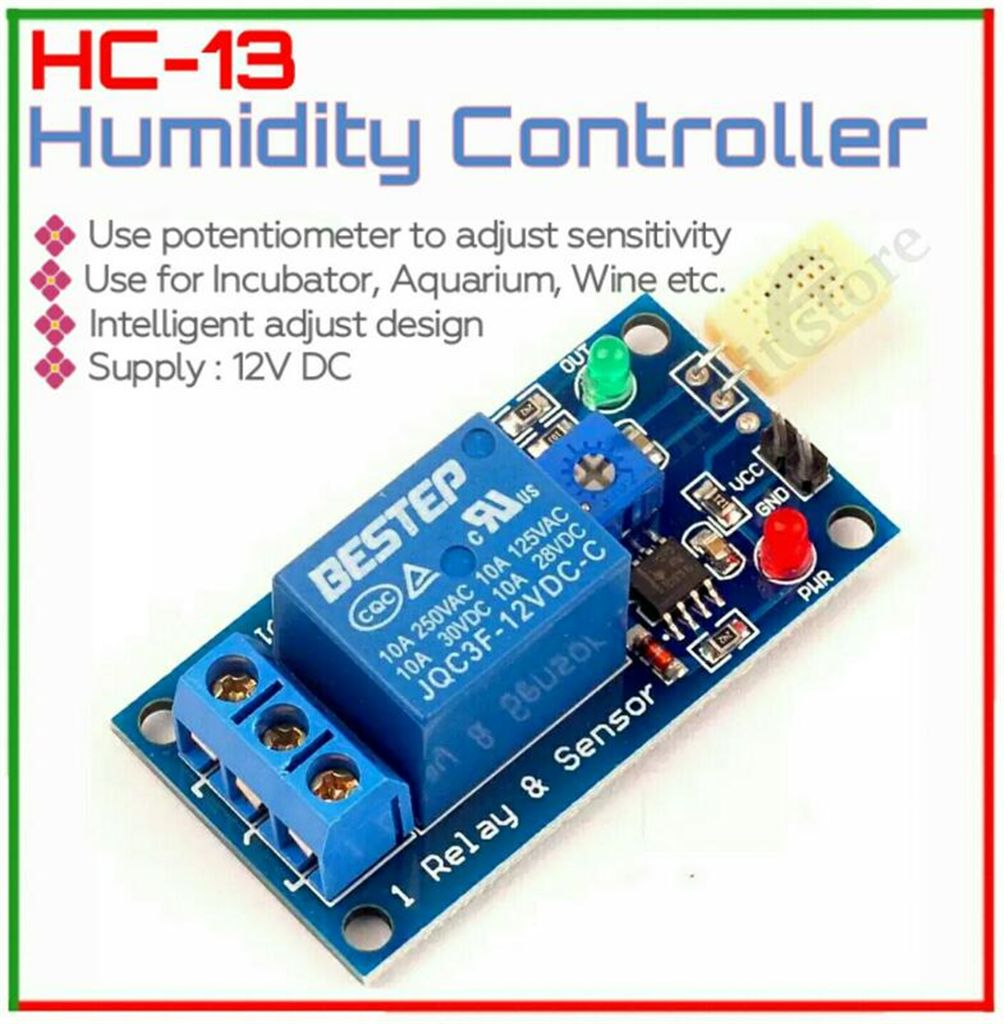

HC-13 Humidity Controller Module
HC-13 হিউমিডিটি কন্ট্রোলার মডিউল
Application: Humidity examination, humidity sensor, environmental humidity detection, with relay output to control related equipment power supply directly
Features:
Adopt superior HR202 humidity sensor;
Comparator output drives the relay directly, and connects with 220V AC or other equipment;
Equipped with a potentiometer to control temperature detection threshold;
The interface of the sensor can install PIN header connector, add moisture sensor with lead wire;
Specifications:
Power supply: 12V DC
Current: ＞ 150mA
Maximum load: 250V 10A AC or 30V 10A DC, All can be used that is less than the power
Circuit board size: 50x26x19mm (L*W*T)
Fixed bolt hole: 3mm
Packages:
1 x Humidity Sensitive Switch Module
