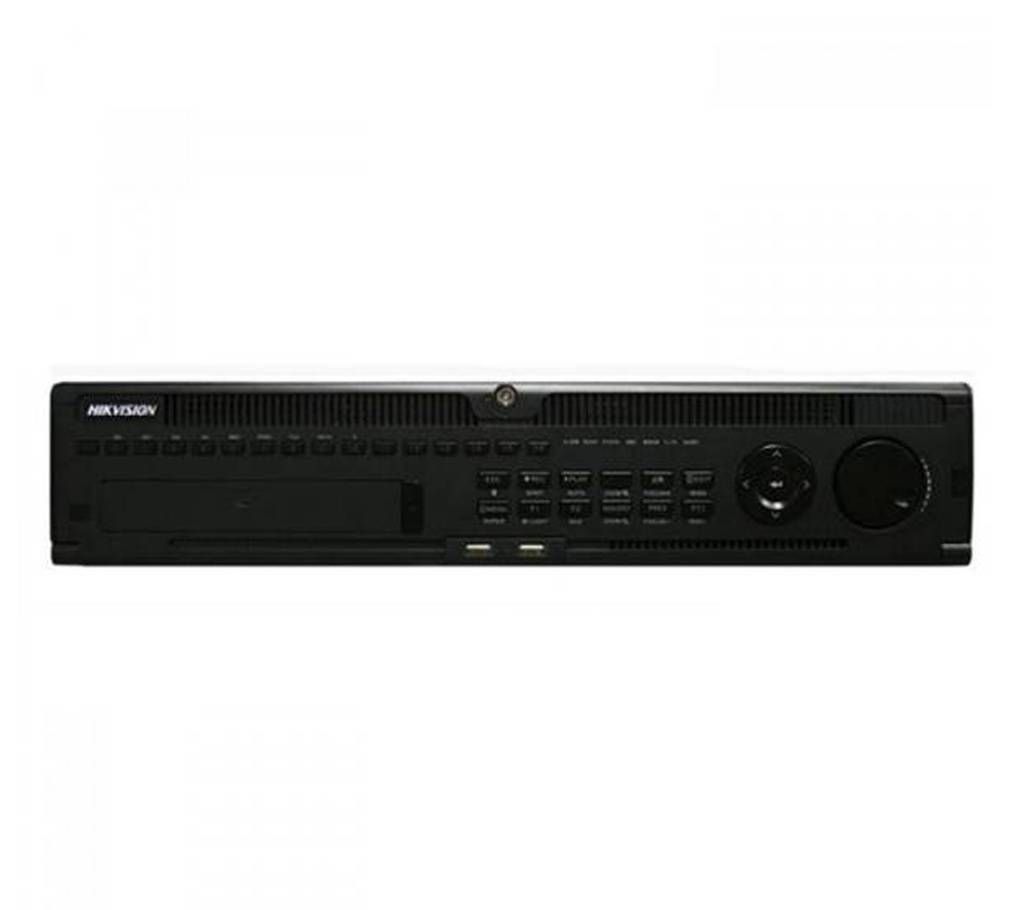

HIKVIISION DS-9664NI-I8Embedded 4K NVR
DS-9632/64NI-I8Embedded 4K NVR
Third-party network cameras supported
Up to 12 Megapixels resolution recording
Support 2-ch HDMI, 2-ch VGA, HMDI1 at up to 4K(3840x2160)
Resolution
Up to 64 IP cameras can be connected with 320M
Incoming bandwidth
Up to 8 SATA interfaces
Support HDD hot swap with RAID0,1,5,6,10 storage
Scheme configurable
Support various VCA detection alarm and VCA search
Support H.265/H.264/MPEG4 video formats
Video/Audio Input
IP video input: 64-ch
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth: 320Mbps or 200Mbps(when RAID is enabled)
Outgoing bandwidth: 256Mpbs or 200Mbps(when RAID is enabled)
Remote connection: 128
Video/Audio Output
HDMI/VGA output: 2-ch, resolution:
HMDI1:4K (3840 × 2160)/60Hz,
4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI2/VGA2:1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output: 2-ch, RCA (2.0Vp-p, 1KΩ)
Synchronous Playback: 16-ch
Decoding
Live view / Playback: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability: 4-ch@8MP,16-ch@1080P
Hard Disk
SATA: 8 SATA interfaces for 8 HDDs
Interface Type: 1 eSATA interface
Capacity: Up to 6TB capacity for each HDD
Disk array
Array type: RAID0, RAID1, RAID5, RAID10
Number of array: 4
External Interface
Network Interface: 2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces
Serial Interface: RS-232, RS-485, Keyboard
USB Interface: Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0
Alarm In: 16-ch
Alarm Out: 4-ch
General
Power Supply: 100 to 240 VAC, 50 to 60 Hz
