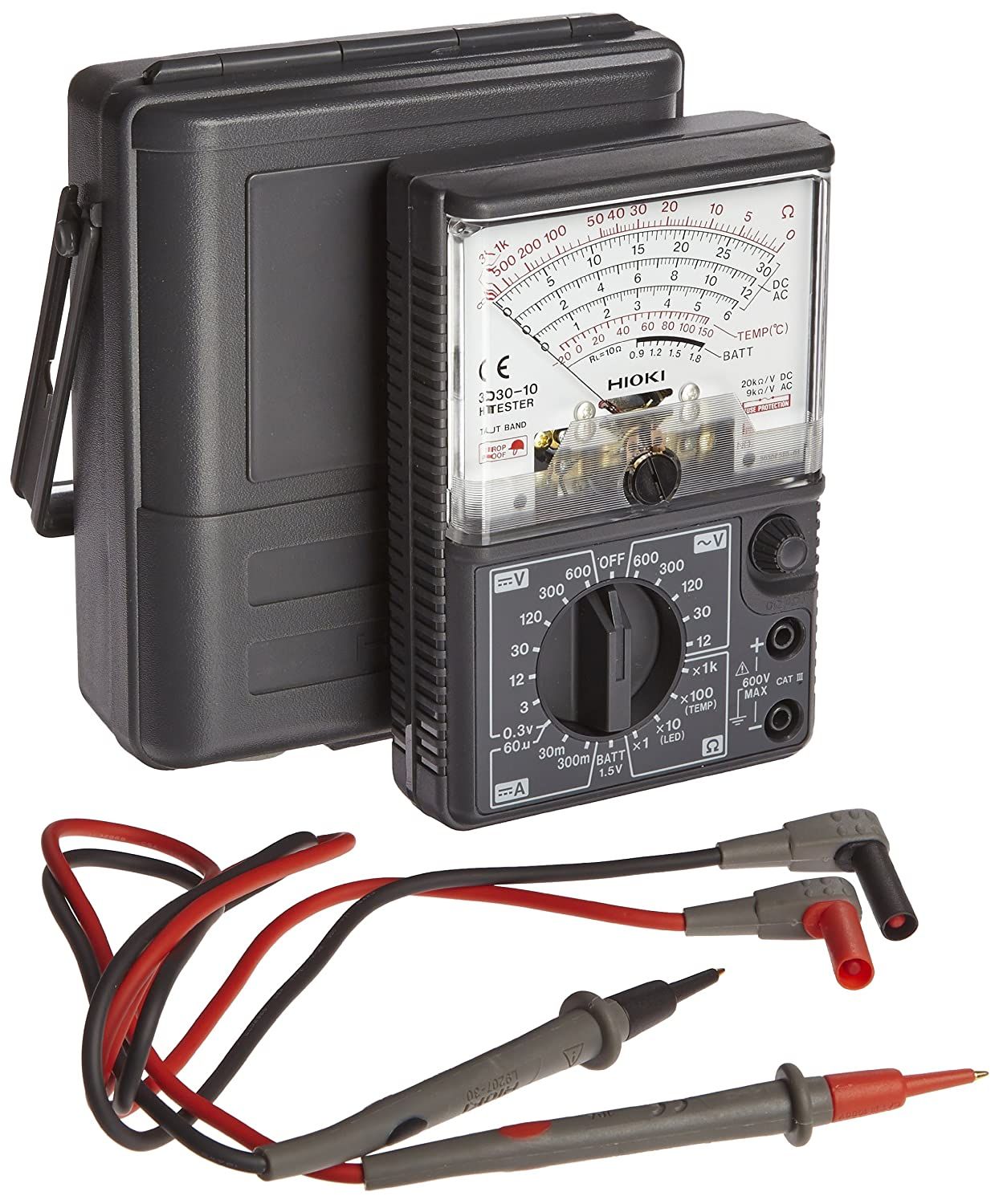

Hioki 3030-10 HiTESTER Analog Multimeter, Manual-Ranging, Average-Sensing
- Brand: Hioki
- Model: 3030-10
- nalog multimeter measures voltage, resistance, and current
- Average-sensing meter provides accurate readings when measuring linear loads where the current or voltage has an undistorted waveform
- Battery tester feature determines amount of charge in 1.5V batteries
- Measures temperature with a thermistor probe (sold separately)
- Meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for Category III installations up to 600V
- DC voltage range: 0.3 V (16.7 kΩ/V), 3/12/30/120/300/600 V (20 kΩ/V)
- AC voltage range: 12 V (9 kΩ/V) Accuracy: ±4 % f.s.
- DC current range: 60 µA/30 m/300 mA (300 mV internal voltage drop)
- Resistance range: 0 to 3 kΩ (center scale 30 Ω), R × 1, R × 10, R × 100, R × 1 k
- Battery check: 0.9 to 1.8 V, load resistance 10 Ω, Accuracy: ±6 % f.s
- Temperature scaleNote: The 3030-10 includes a temperature measurement scale, but because the optional Thermister Temperature Probe 9021-01 has been discontinued, the scale is not available for new customers.
- Power supply: For resistance measurement range, R6P (AA) ×2 batteries
- Accessories: Test Lead L9207-30 ×1, Spare fuse ×1, R6P (AA) manganese batteries ×2, Instruction manual ×1, Carrying case 9390 ×1
