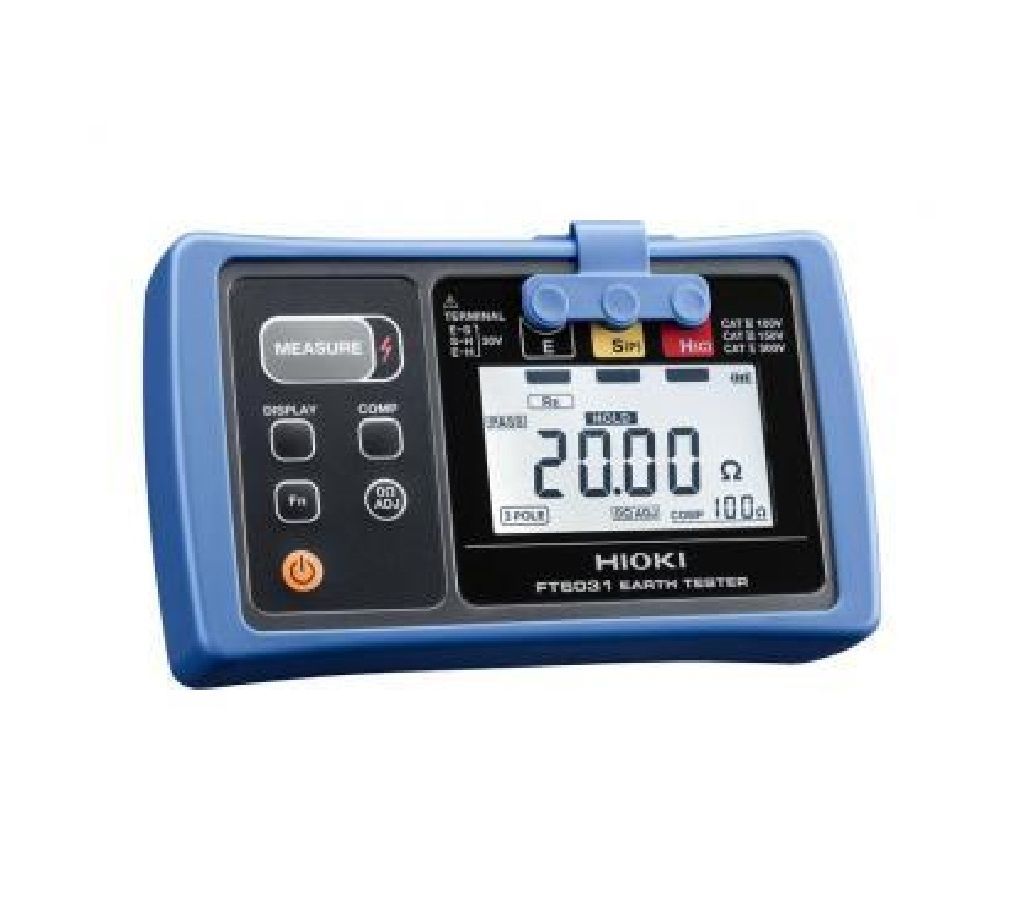

Hioki Launches Earth Tester FT6031
Hioki Launches আর্থ টেস্টার FT6031
Earthing or grounding of electrical equipment is essential to maintain safety, protecting lives, as well as prevent damage to equipment. The FT6031-03 is a IP67 dustproof and waterproof two- or three-pole ground resistance tester with large, easy-to-read display, highly sensitive earthing rods, and innovative cable winder that significantly reduces the amount of time needed to complete earth resistance tests. CAT IV 100 V, CAT III 150 V, CAT II 300 V Key Features • IP67 protected – top of the industry • Test all ground types from Class A to Class D with a single meter • Wide 0 to 2000Ω measurement range • Minimize cabling time with innovative earthing rods and cable winder
Work efficiency is improved by one-touch automatic measurement and reduction of the number of reattachment of the auxiliary ground rods. With
conventional products, there are three operations: (1) Check of ground voltage (2) Check of auxiliary ground pole (3) Ground resistance measurement I went manually. In the FT6031-03, when the measurement button is pressed, the conventional three operations are performed automatically, thus improving the measurement efficiency.
When measuring the grounding resistance, it is necessary to plug the auxiliary ground rod into the ground. Since the tolerance range of the resistance of the auxiliary ground electrode was narrow in conventional products, in order to measure in a dry place, the auxiliary ground rod had to be regrounded many times to lower the resistance of the auxiliary ground electrode.
In the case of the FT6031-03, the tolerance range has been expanded by a factor of 10, so the number of reattachment of the auxiliary ground rods can be greatly reduced.
The automatic measurement start with one touch and the reduction of the number of reseating of the grounding auxiliary rod greatly improve the efficiency of measurement work.
The dustproof and waterproof function has been improved, making it ideal for on-site measurement (in
