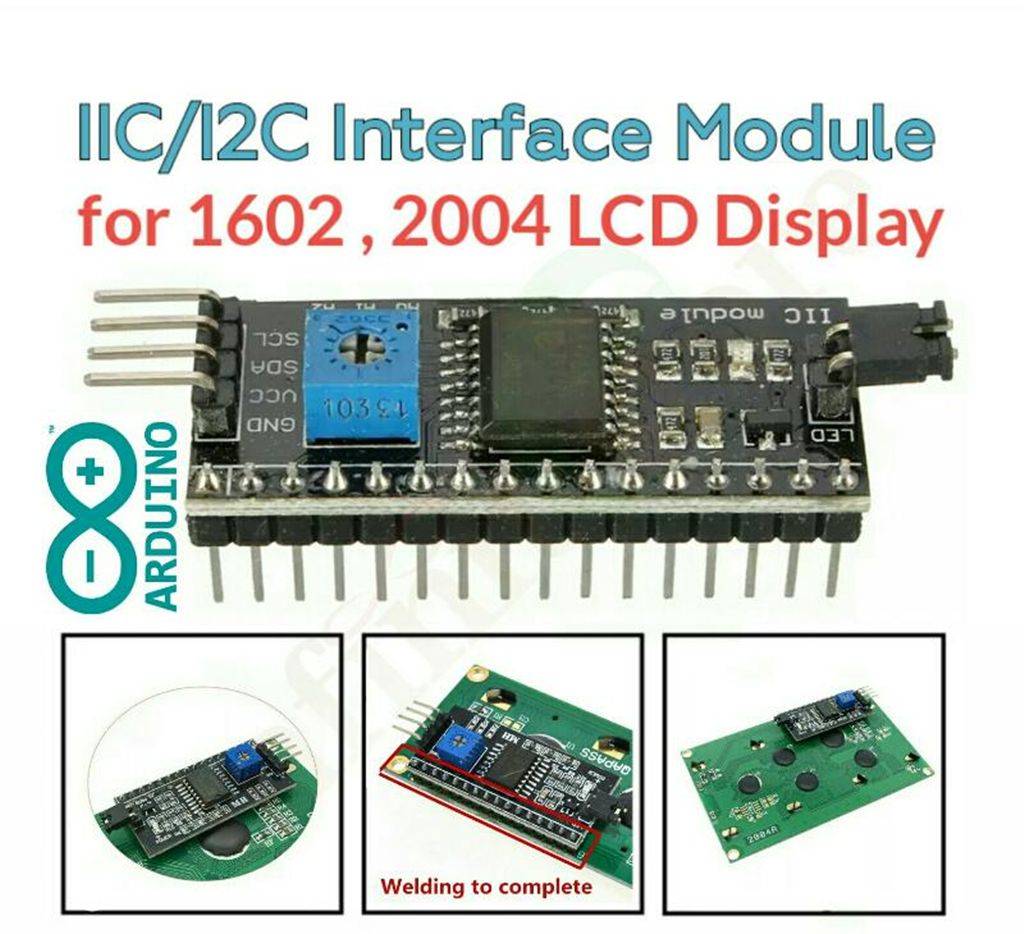

IIC/I2C Interface LCD Adapter
IIC/I2C Interface LCD অ্যাডাপ্টার
Tutorial: https://youtu.be/pVjvwxp2lhI
I2C/IIC 1602 2004 LCD Interface Adapter
Support I2C protocol
Supply voltage: 2.5-6V
Support: 1602, 2004 LCD Display
Weight: 5g
PCB Color: Black
Size: 41.5mm (L) * 19mm (W) * 15.3mm (H)
The power control with backlight can be set via jumpers backlight power supply is connected. Plug jumper to connect the backlight, then unplug the jumper is off backlight power supply
The contrast can be adjusted by turning the blue potentiometer clockwise enhanced counterclockwise weakened. Potentiometer design on the front and the convenience of customers anytime, anywhere free adjustment
The module can cascade up to eight cascaded. / A1 / A2 modify the device address via short circuit A0. The default address is 0x27
