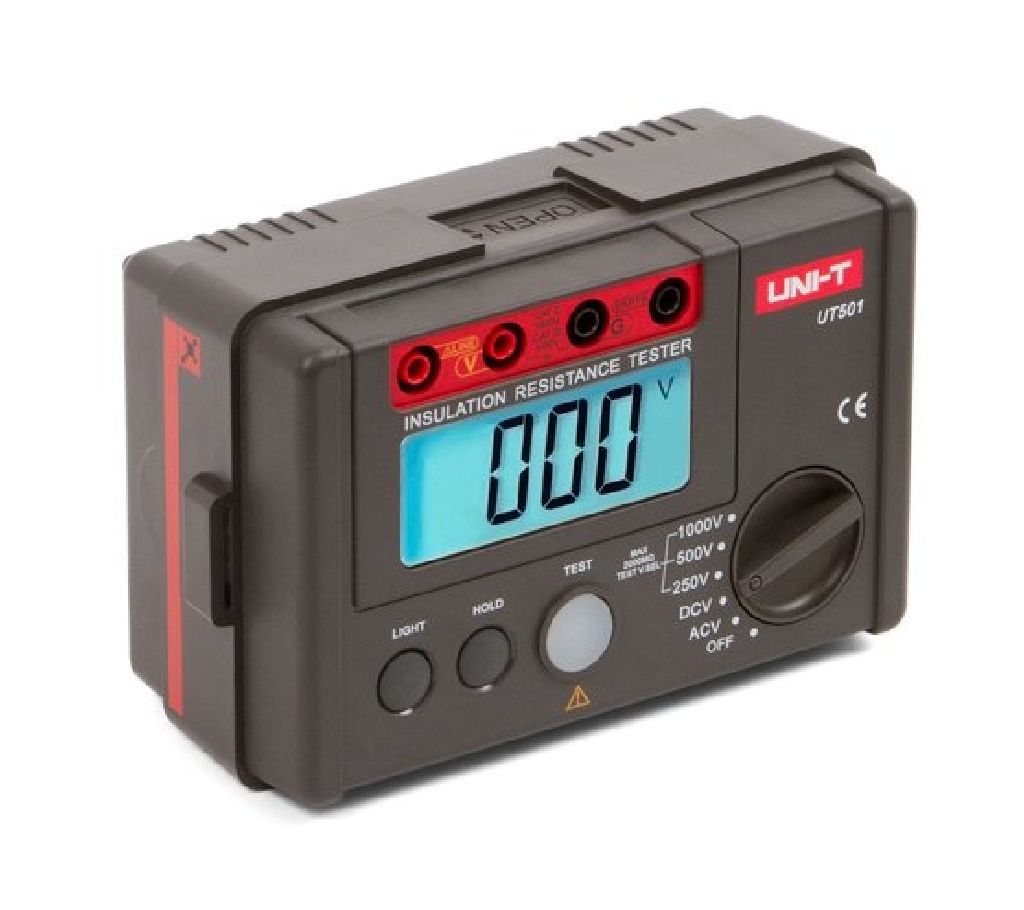

Insulation Tester UNI-T UT501
Insulation টেস্টার UNI-T UT501
UNI-T UT501 INSULATION TESTER FEATURES
Functions:
insulation resistance
resistance
DC voltage
AC voltage
Auto ranging
Alarm light display and buzzer
Low battery indication
UNI-T UT501 INSULATION TESTER TECHNICAL SPECIFICATIONS
Display LCD with backlight, 70.6 × 34 mm
Output voltage Range 250 V / 500 V / 1000 V
Accuracy ±10%
Current Range 250 V 1 mA
500 V
1000 V
Accuracy ±10%
Short circuit current <2 mA
Insulation resistance measurement Range 250 V 3 MΩ to 2000 MΩ
500 V
1000 V 3 MΩ to 2 GΩ
Accuracy ±3%+5
Voltage measurement 1000 V DC, 750 V AC
Accuracy ±2%+3
Power 6 × 1.5 V battery (R14)
Dimensions (H × W × D), mm 150 × 100 × 71
Weight, kg 0.5
UNI-T UT501 INSULATION TESTER PACKAGE
Megaohmmeter UNI-T UT501 — 1 pc.
Test leads — 1 set
Test probes — 1 set
Alligator clip — 1 pc.
Carrying bag — 1 pc.
Strap — 1 pc.
1.5 V battery (LR14) — 6 pcs.
User manual — 1 pc.
