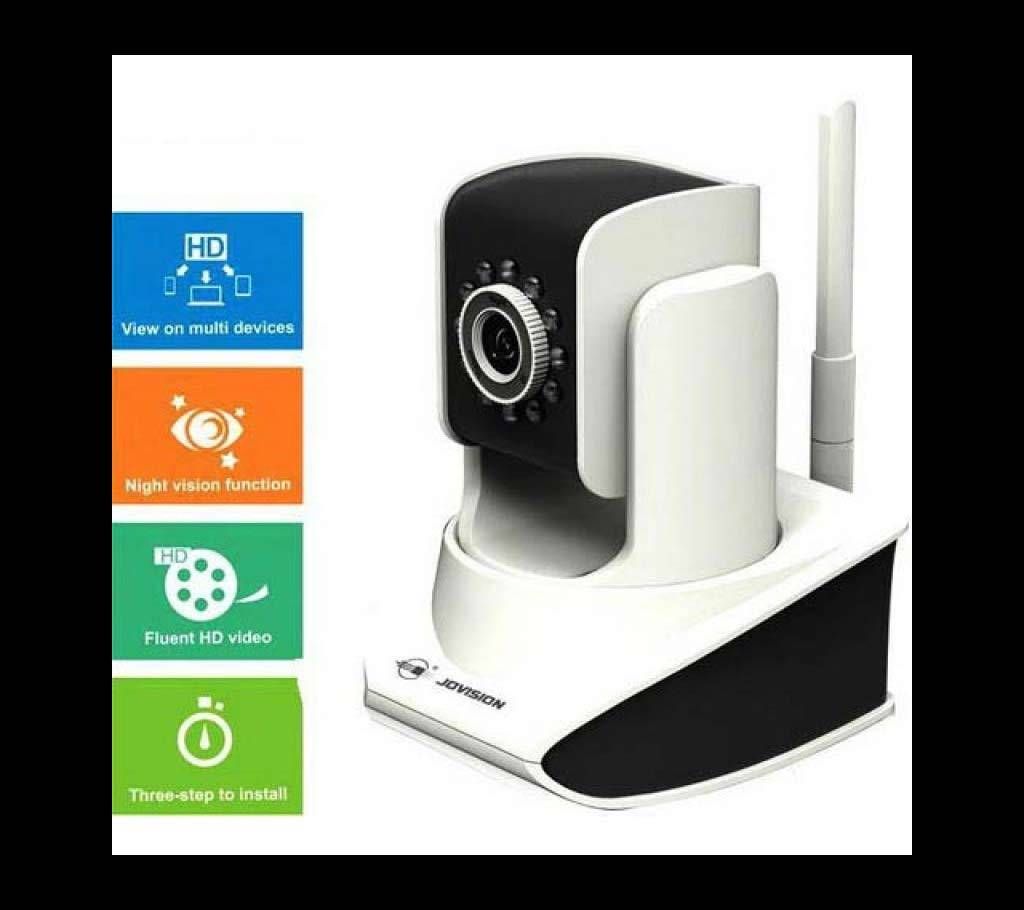

IP Camera Model: JVS-H411
Brand: JOVISION
IR Distance: 10m
Resolution: 1MP(1280*720)
Model/Specification JVS-H411
Camera
Image Sensor 1/4″CMOS
Resolution 1280×720
Pixel 1.0MP
Compression H.264/JPEG
Frame Rate 25fps
Bit Rate 40Kbps～6Mbps
Min.Illumination 0Lux(IR ON)
Lens
Lens Mount M12
Lens 4mm
View Angle 71°
Focus Fixed
Function
Privacy Mask 4 Rectangle areas
Exposure Control Auto
Gain Control Auto
White Balance Auto
Day & Night IR cut filter with auto switch，
Support Color to Black
Video Adjust Supports contrast, brightness,
saturation, sharpness adjustment
Remote Operation System、Stream、User、Network Management
Motion Detection Support
Alarm E-mail、Client
Voice Intercom Support
Local Storage 64G
PTZ Control
Rotation Angel Horizon:355° Vertical:120°
Preset 127
Automatic Cruise 1 line
Horizontal Scan 1 Line
Interface
Audio Input 1个 Built-in MIC
Audio Output 1 Built-in Speaker
Net 1 RJ45 10M/100M adaptive interface
Alarm In 1 CH
Alarm Output 1 CH
TF slot 1 standard TF card slot
Reset Restore to the factory settings
Network
Ethernet 10/100M Ethernet
Wireless WIFI
Dual Stream Support
Protocol HTTP,TCP/IP,ICMP,UDP,SMTP,FTP,DHCP,DNS,PPPOE
Transmission Internal Cloudsee Protocol
Browser IE8+,Chrome18+,Firefox5.0+,Safari5.02+
Connection 6 CH
User Permission Up to 13 users，Three level authority：
Administrator、User、Visitor
General
Infrared Lamp 10 LED Lamps
IR distance（m） 10m
Best distance（m） 8m
Temperature -20℃～55℃
Humidity
10%～90%
Power Supply DC 5V/2A
Power ≦3.65W
Material White ABS+PC
Size(W×H×D)(mm) 95×123×122
Weight(g) 300
Installation Wall/Ceil/Desk Mounting
