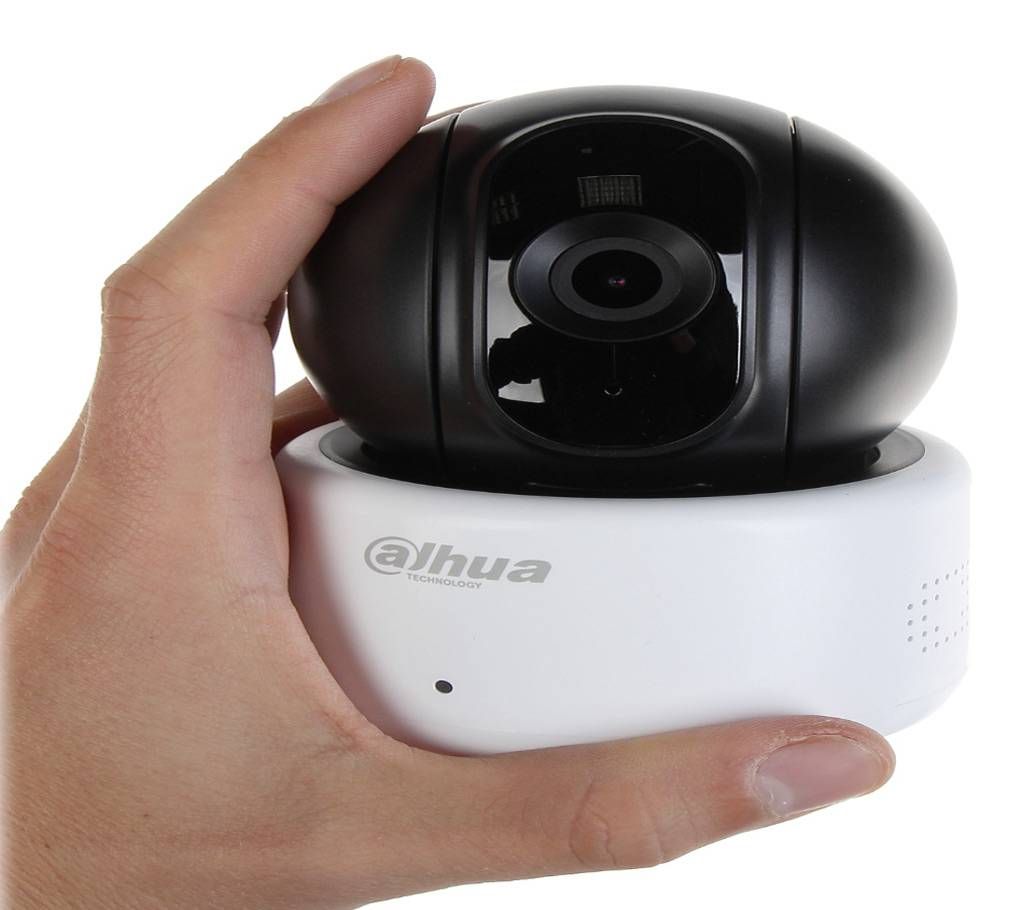

IP PTZ CAMERA INDOOR DH-IPC-A12P Wi-Fi - 720p 2.8
IP PTZ camera with efficient H.264 image compression algorithm for clear and
smooth video streaming at max. resolution of 1 MPx.
The cameras of the Dahua Consumer series have been designed with special care to
simplify the configuration and operation. In combination with the user friendly
Lechange platform, the Dahua Consumer series devices allow anyone to create a
simple and effective surveillance system.
Very easy operation via mobile devices (Android / iOS), allows the users for
comfortable and remote operation, and also management of the camera. The used
Wi-Fi module allows to remote communication with camera for max. distance up to
50 m.
The device is ideal for eg. as a baby monitor, with mobile image view on smartphone
and possibility of bi-directional audio transmission.
SPECIFICATION
Standard: TCP/IP
Sensor: 1/4 " Progressive Scan CMOS
Matrix size: 1.0 Mpx
Resolution: 1280 x 720 - 720p
Lens: 2.8 mm
View angle: 94 °
Range of IR illumination: 10 m
Horizontal rotation range: 355 °
Vertical rotation range: -5 ° ... 90 °
Audio:
Microphone built-in,
Speakers built-in,
Bi-directional audio streaming support
Image compression method: H.264
Main stream frame rate: 25 fps @ 720p
Network protocols: TCP, DHCP
ONVIF:
Network interface: Wi-Fi - IEEE 802.11 b/g/n
Mobile phones support:
Access by a cloud (P2P)
Android: Free application Lechange
iOS (iPhone): Free application Lechange
Default admin user / password: admin / admin
Default IP address: DHCP
Web browser access ports:
PC client access ports:
Mobile client access ports:
Port ONVIF:
WEB Server:
RTSP URL:
Memory card slot: Micro SD memory cards up to 128GB support (possible local recording)
Main features:
Wi-Fi module - IEEE 802.11 b/g/n, Range : 50 m (open area)
Motion Detection
Power supply: 5 V DC / 2 A (power adapter included)
Power consumption: < 7
