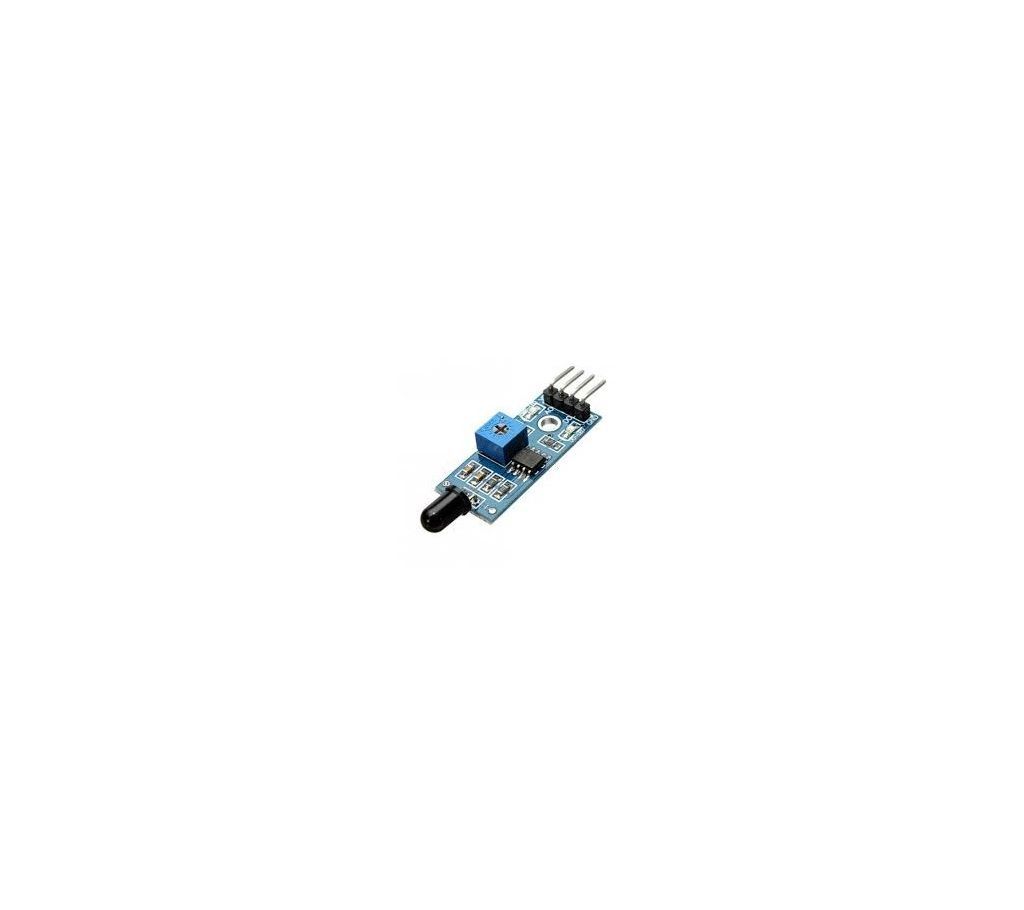

IR Infrared Flame Sensor Module
IR ইনফ্রারেড ফ্লেম সেন্সর মডিউল
Description:
This module is sensitive to the flame, but also can measure ordinary light. Usually used as a flame alarm. On board, digital output interface can be directly connected with the microcontroller IO.
Feature:
Measure a flame or a light source of a wavelength in the range of 760nm-1100 nm
Measure angle about 60 degrees, it is sensitive to the flame spectrum.
Accuracy adjustable
Operating voltage 3.3V ~ 5V
Output
-Analog voltage output
-Digital switch outputs (0 and 1)
With a mounting screw hole
Power indicator (red) and digital switch output indicator (green)
Comparator chip LM393, it is stable
Flame measure distance, lighter flame test can be triggered within 0.8m, if the intensity of flame is high, the measure distance will be increased.
Interface(4-wire):
VCC: 3.3V ~ 5V
GND: GND
DO: board digital output interface (0 and 1)
AO: board analog output interface
Size: 3.2 x 1.9cm
Note:
Please keep a distance with flame, high temperature maybe burn out the sensor module.
Package included:
1 x Flame sensor module
