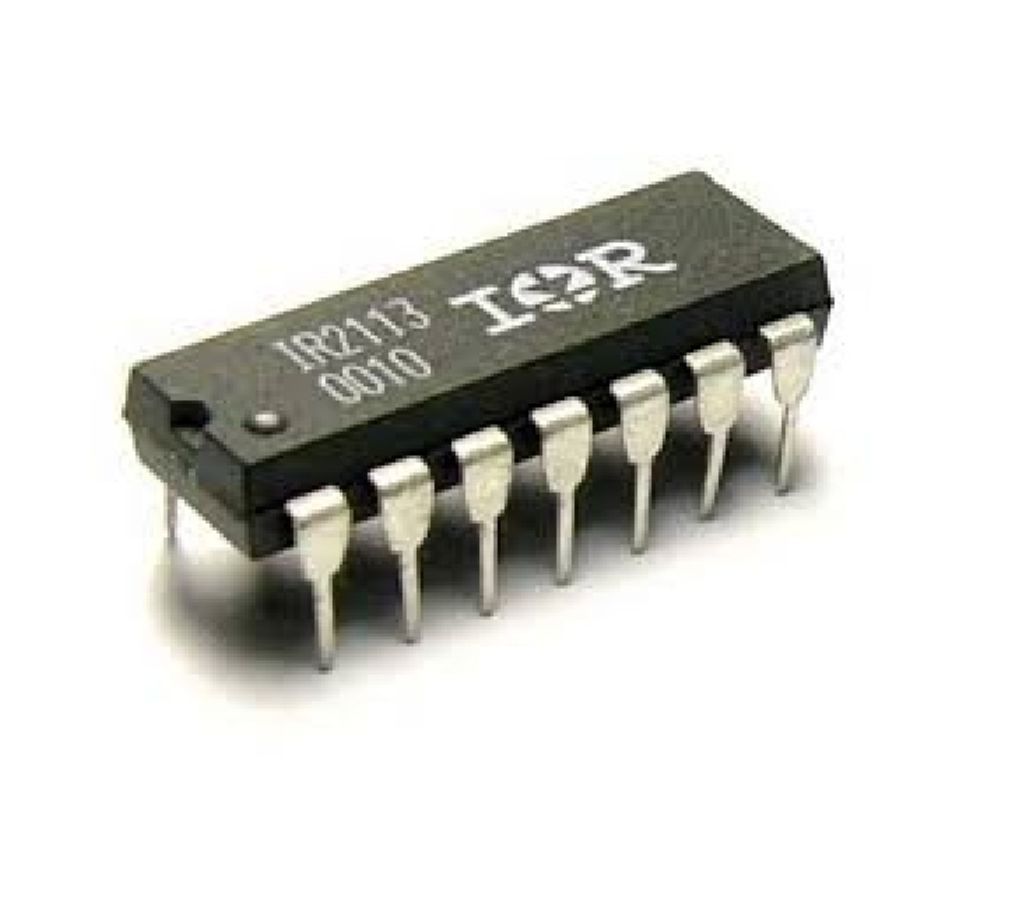

IR2113 High and Low Side Driver
IR2113 High and Low সাইড ড্রাইভার
High and Low Side Driver, All High Voltage Pins On One Side, Separate Logic and Power Ground, Shut-Down
Benefits:
Floating channel designed for bootstrap operation
Fully operational to +500V or +600V
Tolerant to negative transient voltage
dV/dt immune
Gate drive supply range from 10 to 20V
Undervoltage lockout for both channels
3.3V logic compatible
Separate logic supply range from 3.3V to 20V
Logic and power ground + – 5V offset
CMOS Schmitt-triggered inputs with pull-down
Cycle by cycle edge-triggered shutdown logic
Matched propagation delay for both channels
Outputs in phase with inputs
Target Applications:
Air Conditioner
Dishwasher
Dryer
Fan
Induction Cooker
Pump
Refridgeration
Solar
UPS
Washing Machine
