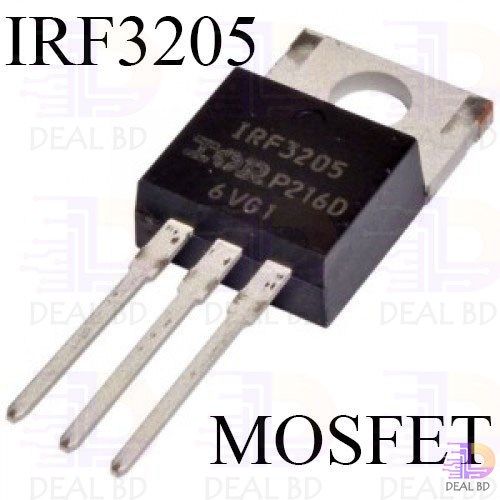

IRF3205 MOSFET IC A Class IRF 3205 55V 110A 200W TO-220 N Channel Power MOSFET 3 Pin Transistor IC Electrical Circuitry & Parts
- Transistor Polarity: N
- Maximum Drain Source Voltage: 55 V
- Maximum Continuous Drain Current: 110 A
- Maximum Gate Source Voltage: ±20V
- Power Dissipation: 200 W
- Maximum Forward Voltage: 55VDC
- Output Power: 200W
- Peak Non-Repetitive Surge Current: 390A
- Maximum Reverse Current: 25uA
- Channel Mode: N-Channel Enhancement
- Peak Reverse Recovery Time : 101ns
- Repetitive Peak Reverse Voltage: 55VDC
- Configuration: Single
- Maximum Drain Source Resistance: 0.008 Ohms@10V
- Category Power: MOSFET
- Maximum Forward Current: 110A
- Typical Fall Time: 65ns
- Typical Gate Charge: @ Vgs 146nC @10V
- Typical Input Capacitance: @ Vds 3247pF@25V
- Typical Rise Time: 101ns
- Typical Turn-Off Delay Time: 50ns
- Typical Turn-On Delay Time: 14ns
- Minimum Operating Temperature: -55°C
- Maximum Operating Temperature:175°C
- Mounting Through: Hole
- Pins: 3
- Family: IRF3205
- Width: 4.69mm
- Height: 8.77mm
- Product Length: 10.54mm
- Product Type: MOSFET
