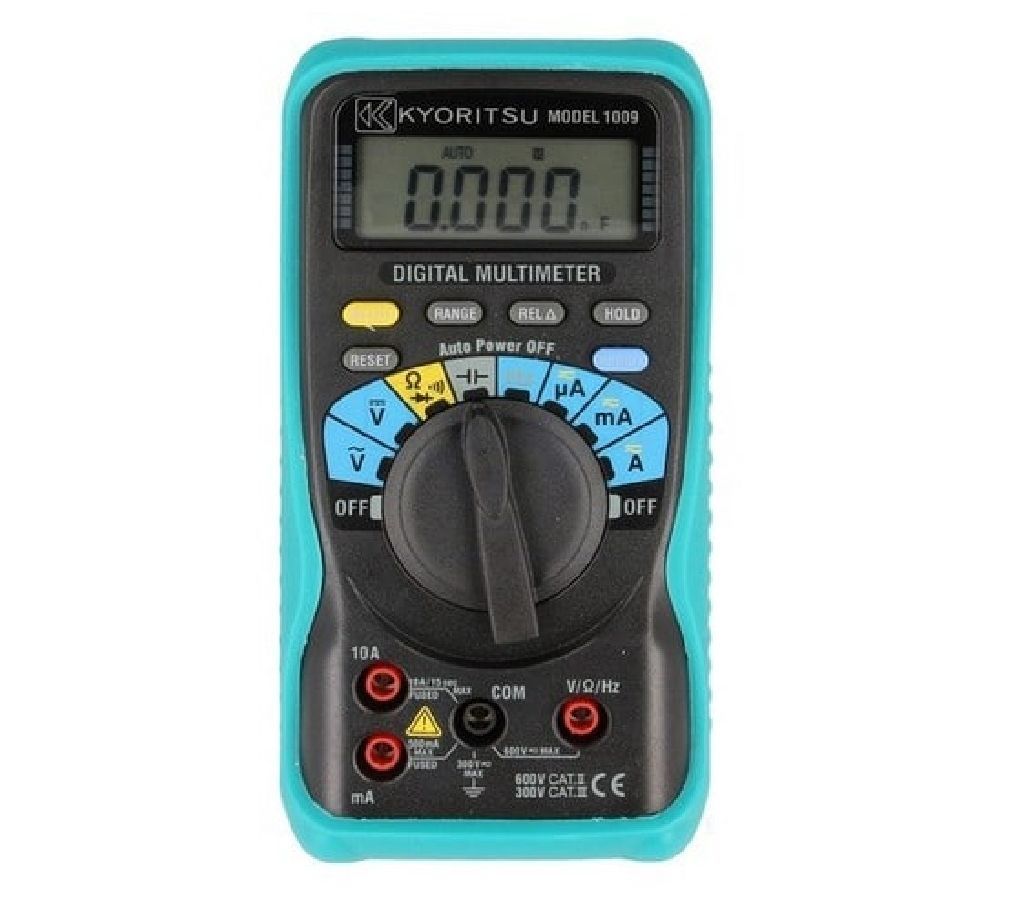

KYORITSU 1009 DIGITAL MULTIMETER TRUE RMS 600V AC/DC VOLTAGE MULTIMETER
KYORITSU 1009 ডিজিটাল মাল্টিমিটার TRUE RMS 600V AC/DC VOLTAGE MULTIMETER
KYORITSU 1009 DIGITAL MULTIMETER TRUE RMS 600V AC/DC VOLTAGE MULTIMETER
Features:
4000 counts, bar graph display.
Range reserved switchable automatic and manual switch range.
Diode test function.
Capacitance, continuity test function.
Comparison test function.
Automatic shutdown.
Test port 10A (AC / DC).
Designed to meet international safety standard IEC61010-1 CAT.III 300V.
Specifications:
DC Voltage Range: 400mV/4/40/400/600V (Input Impedance 10M?)
Accuracy: ±0.6%rdg ±4dgt (400mV/4/40/400V), ±1.0%rdg ±4dgt (600V)
AC Voltage Range: 400mV/4/40/400/600V (Input Impedance 10M?)
Accuracy: ±1.6%rdg ±4dgt (20~400mV), ±1.3%rdg ±4dgt (4/40V), ±1.6%rdg ±4dgt (400/600V)
DC Current Range: 400/4000?A/40/400mA/4/10A
Accuracy: ±2.0%rdg ±4dgt (400/4000?A), ±1.0%rdg ±4dgt (40/400mA), ±1.6%rdg ±4dgt (4/10A)
AC Current Range: 400/4000?A/40/400mA/4/10A
Accuracy: ±2.6%rdg ±4dgt (400/4000?A), ±2.0%rdg ±4dgt (40/400mA/4/10A)
Resistance Range: 400?/4/40/400k?/4/40M?
Accuracy:±1.0%rdg ±4dgt (400?/4/40/400k?/4M?), ±2.0%rdg ±4dgt (40M?)
Continuity Buzzer: 400?(Buzzer sounds below 70?)
Diode Test: 1.5V Release Voltage:Approx. 0.4mA Test Current
Capacitance Range: 40/400nF/4/40/100?F
Frequency Range: 5.12/51.2/512Hz/5.12/51.2/512kHz/5.12/10MHz
Duty Cycle: 0.1~99.9% (Pulse width/Pulse period)
Accuracy: ±2.5% ±5dgt
Withstand Voltage: AC 3700V / 1min.
Standard: IEC 61010-1 CAT.III 300V, IEC 61010-2-031, IEC 61326
Power Supply: R6P(1.5V) x 2
Dimensions 155(L) x 75(W) x 33(D)mm
Weight: Approx. 260g
