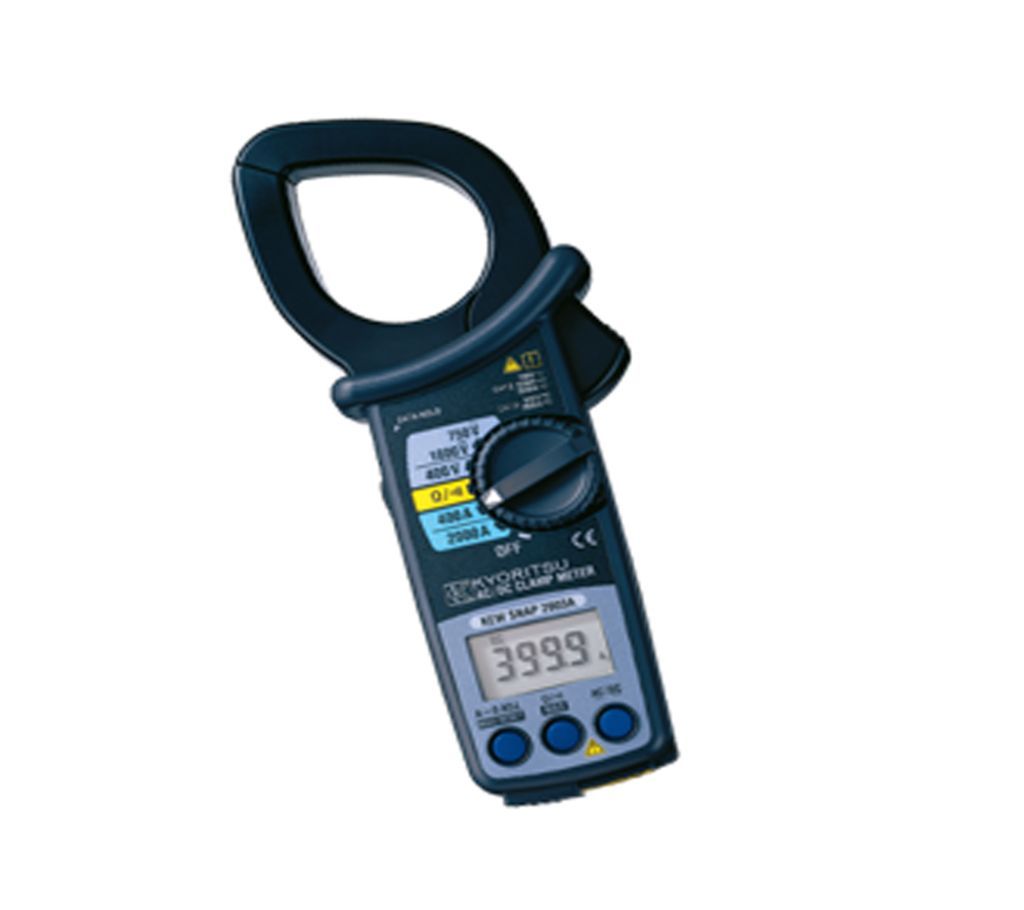

Kyoritsu 2003A AC/DC TRMS Digital Clamp Meter
Kyoritsu 2003A AC/DC TRMS ডিজিটাল ক্ল্যাম্প মিটার
We are among the well-known names in the sector, involved in Trading, Manufacturing and Supplying of AC/DC Digital Clamp Meters – KEW 2003A in Ahmedabad, Gujarat, India.
Features:
Equipped to measure both AC and DC current with transformer jaws of large diameter.
Can measure AC and DC currents up to 2000A.
The output terminal for connection to recorders.
Technical Specifications
AC A
400A/2000A (0 – 1000A)+1.5%rdg+2dgt [50/60Hz]+3%rdg+4dgt [40 – 500Hz]+5%rdg+4dgt [500Hz – 1kHz]2000A (1001 -2000A)+3%rdg+2dgt [50/60Hz]
DC A
400/2000A +1.5%rdg+2dgt
AC V
400/750V+1.5%rdg+2dgt [50/60Hz]+1.5%rdg+4dgt [40Hz – 1kHz]
DC V
400/1000V +1%rdg+2dgt
400/4000 +1.5%rdg+2dgt
Continuity buzzer
buzzer sounds below 50+35
Conductor size
55mm max.
Frequency response
40Hz – 1kHz
Output
Recorder :DC400mV against AC/DC400ADC200mV against AC/DC2000A
Safety Standard
IEC 61010-1 CAT IV 600V , CAT III 1000VIEC 61010-031IEC 61010-2-032
Power source
R6 (AA) (1.5V) – 2
Dimensions
250(L) x105 (W) x 49(D)mm
Weight
530g approx.
Included Accessories
7107A (Test leads)8201 (Output Plug)9094 (Carrying Case)R6 (AA) 2Instruction Manual
Optional Accessories
8008 (Multi-Tran) (AC only)7256 (Output cord)
