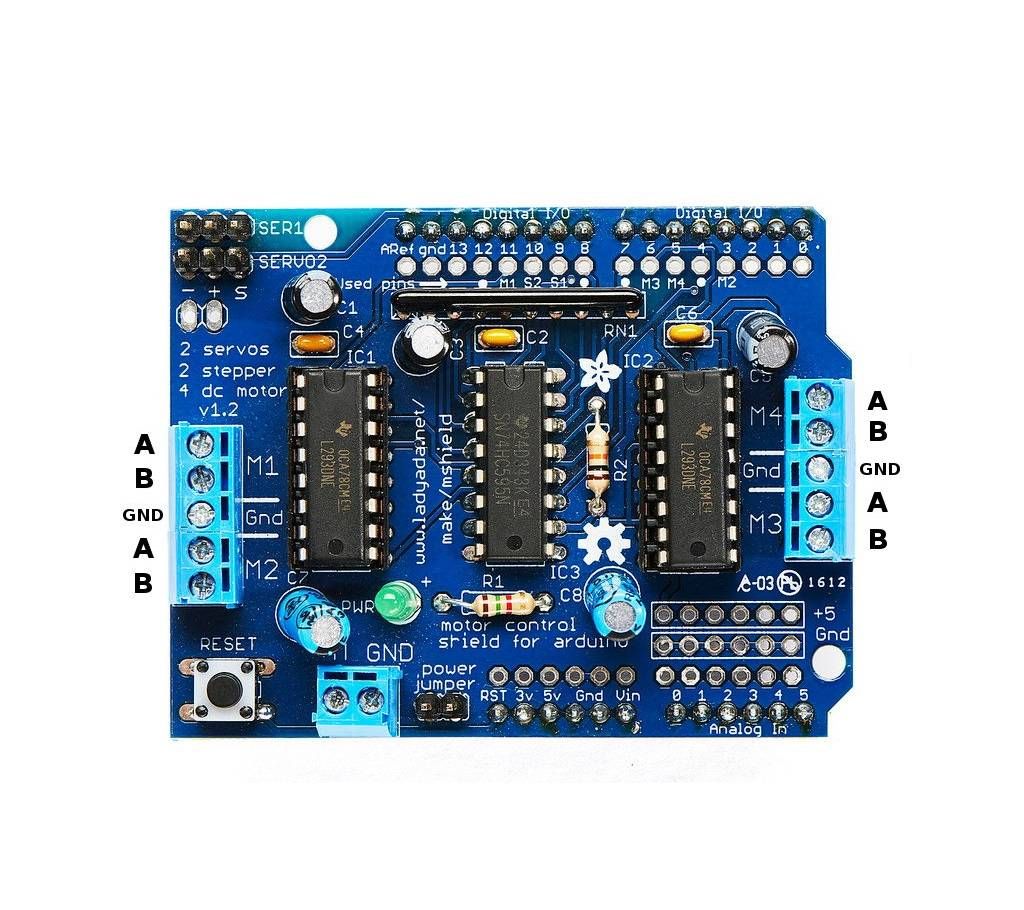

L293D Driver Motor Driver for Arduino
L293D ড্রাইভার মোটর ড্রাইভার ফর Arduino
Four H-Bridges : Two L293D Motor driver chips
L293D is rated at 0.6A per bridge (1.2A peak) with thermal shutdown protection, internal kickback protection diodes
Motor Voltages from 4.5VDC to 16VDC. (up to 36V if C6 and C7 are upgraded)
Up to 4 bi-directional DC motors with individual 8-bit speed selection (256 speeds)
Up to 2 stepper motors (unipolar or bipolar)
Pull down resistors keep motors disabled during power-up
Separate Logic and Motor power connections
Terminal block connectors for motors and power
2 connections for 5V 'hobby' servos
