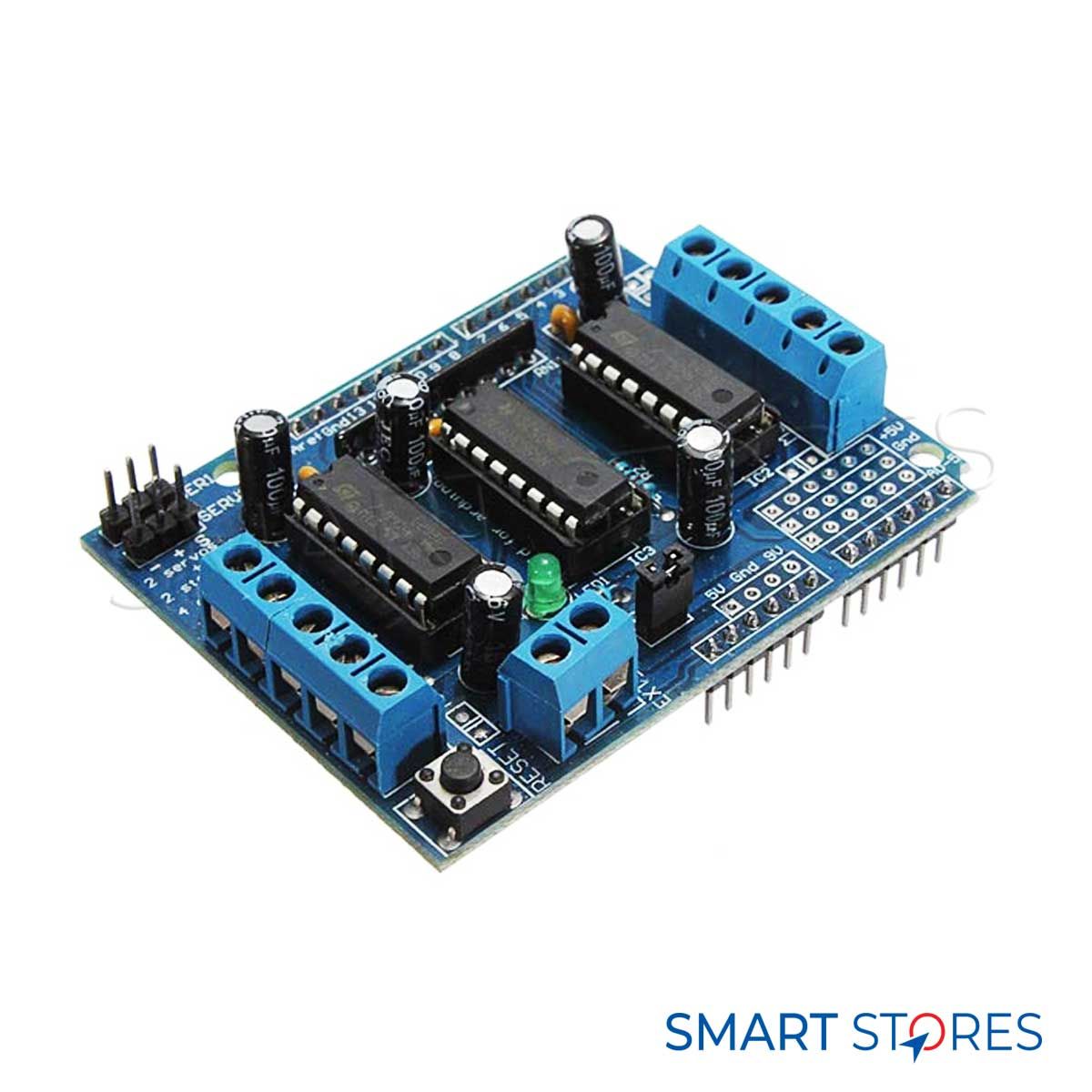

L293D Motor Driver (Stepper/Servo Shield) For Rc Project
- 2 interface for 5V Servo connected to the Arduino's high-resolution dedicated timer – no jitter
- Can drive 4 DC motors or 2 stepper motors or 2 Servo
- Up to 4 bi-directional DC motors with individual 8-bit speed selection
- Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping
- 4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on 4.5V to 36V DC
- Pull down resistors keep motors disabled during power-up
- Reset button
- 2 external terminal power interface, for seperate logic / motor supplies
- Tested compatible for Arduino Mega, Diecimila & Duemilanove
- Size: 6.8 x 5.3 x 2cm
