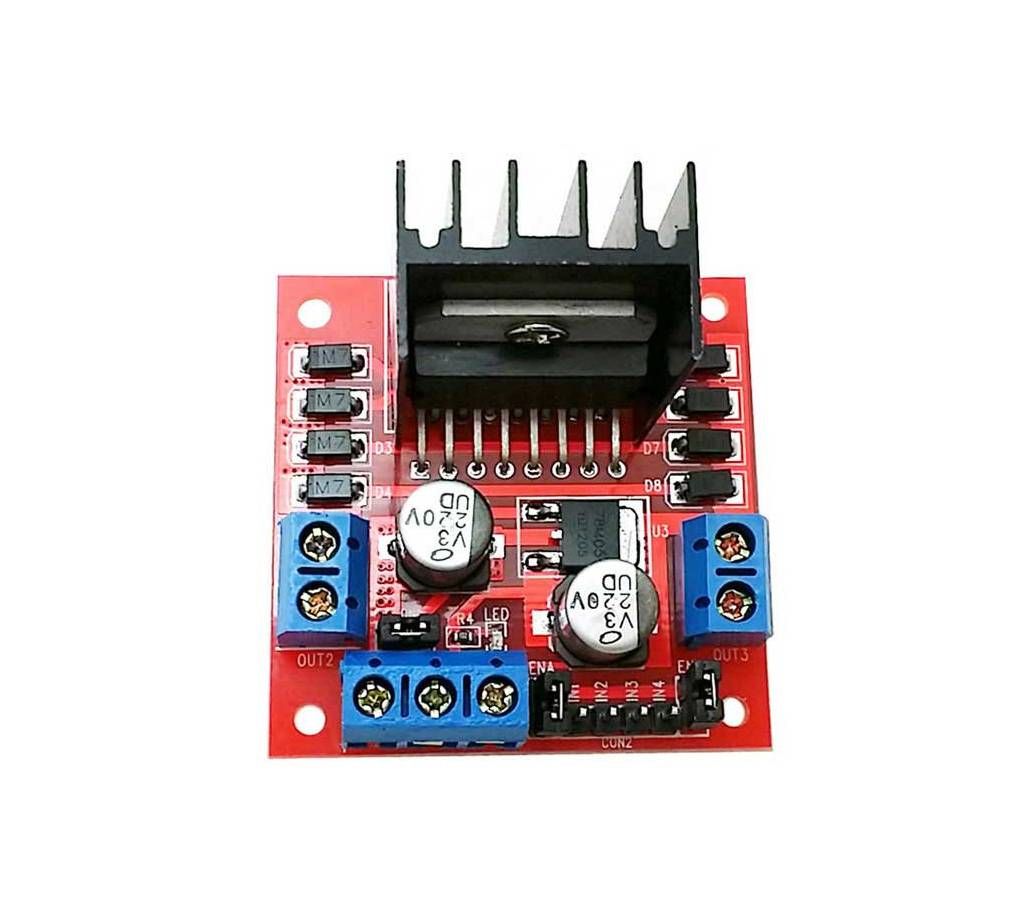

L298 MOTOR DRIVER for Arduino
L298 মোটর ড্রাইভার ফর Arduino
A motor controller is a device that serves to govern in some predetermined manner the performance of an electric motor. A motor controller might include a manual or automatic means for starting and stopping the motor, selecting forward or reverse rotation, regulating the speed and torque, and protecting against overloads and faults.
This Dual Motor Controller is easy to use, thank's to the L298 motor driver chip. This chip allows for direct drive of two bi-directional DC motors, and incorporates high-speed short diodes for protection. Drive current up to 2A per motor output. The driver uses a broad-brush design to reduce wire resistance.
Materyal list:
1 x Arduino uno
2 x DC motors
1 x L298 motor driver integrated
1 x 9 - 12V Battery
L298 Dual H-Bridge
Based on popular L298 Dual H-Bridge Motor Driver Integrated Circuit
Motor supply: 7 to 24 VDC
Control logic: Standard TTL logic level
4 Direction LED indicators
The L298 Dual H-Bridge DC Motor Controller will allow you to easily and independently control two motors of up to 2A each in both directions.It is ideal for robotic applications and well suited for connection to a microcontroller requiring just a couple of control lines per motor.It can also be interfaced with simple manual switches, TTL logic gates,relays, etc
